Light Duty Lever Industrial Push - Pull Hand Control Lever Part No. Code CA 292 - X - XX - T – L
【 Product Description 】

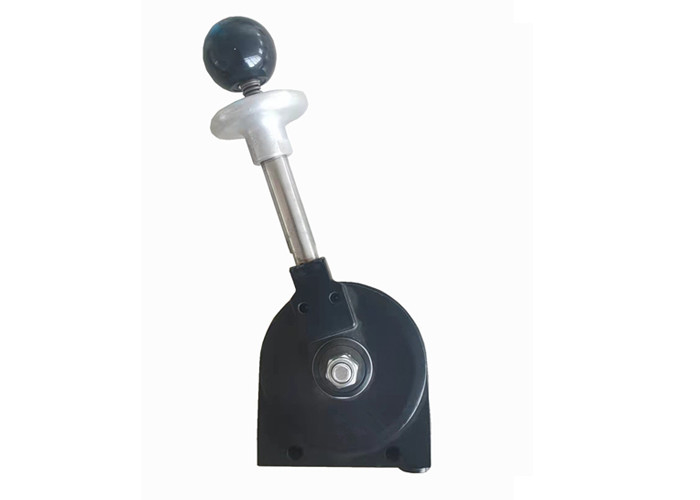

This light duty lever controls VLD control lever with available locking detents, offering a 4.5 to 1 mechanical advantage. Adjustable friction control with 2-bolt mounting scheme. Robust cast alloy weatherproof assembly in black finish with chrome steel lever and black plastic handle.
|
【 Applications 】 |
【 Material 】 |
【 Light Duty Lever 】
| Model | 22.1 |
| Travel | 3.15" (80mm) |
| Mech. Advantage | 1:4.5 |
| Maximum Load | 68lb (300N) |
| A) Lever Angle | 156° |
| B) Lever Length | 5.75" (146mm) |
| C) Lever Offset | 2.20" (56mm) |
Travel can be limited symmetrically or asymmetrically, on both 22.1 and 22.3 levers, 10/20mm using coiled spring pins (sold separately).
Coiled Pin P/N 175-420-034
| Pin in: | Travel: | Travel Course: |
| 1 or 8 | 40mm | asymmetrical |
| 2 or 7 | 50mm | asymmetrical |
| 3 or 6 | 60mm | asymmetrical |
| 4 or 5 | 70mm | asymmetrical |
All line art dimensions are represented in inches
