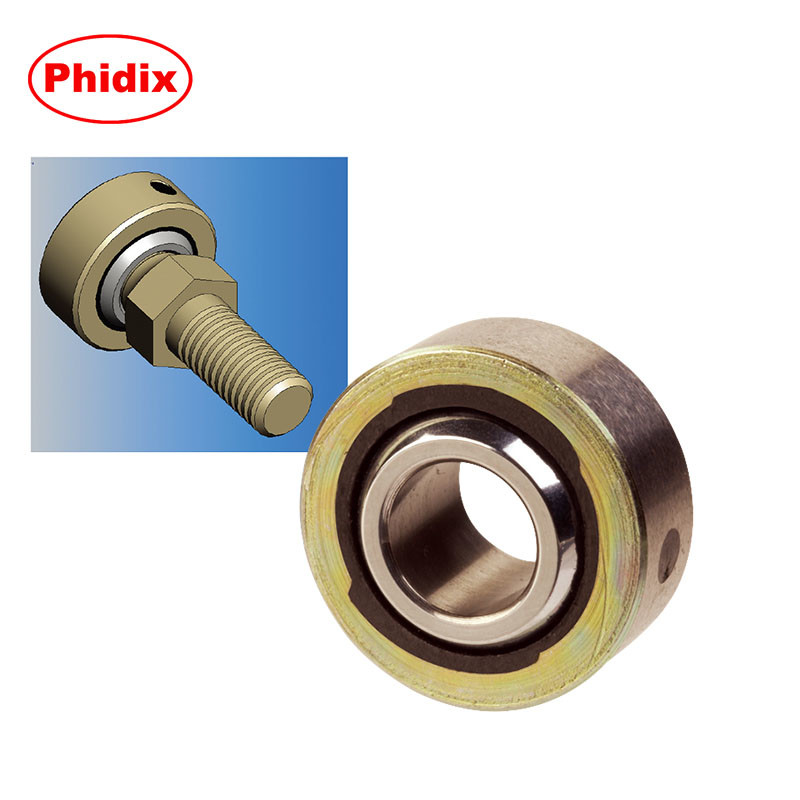

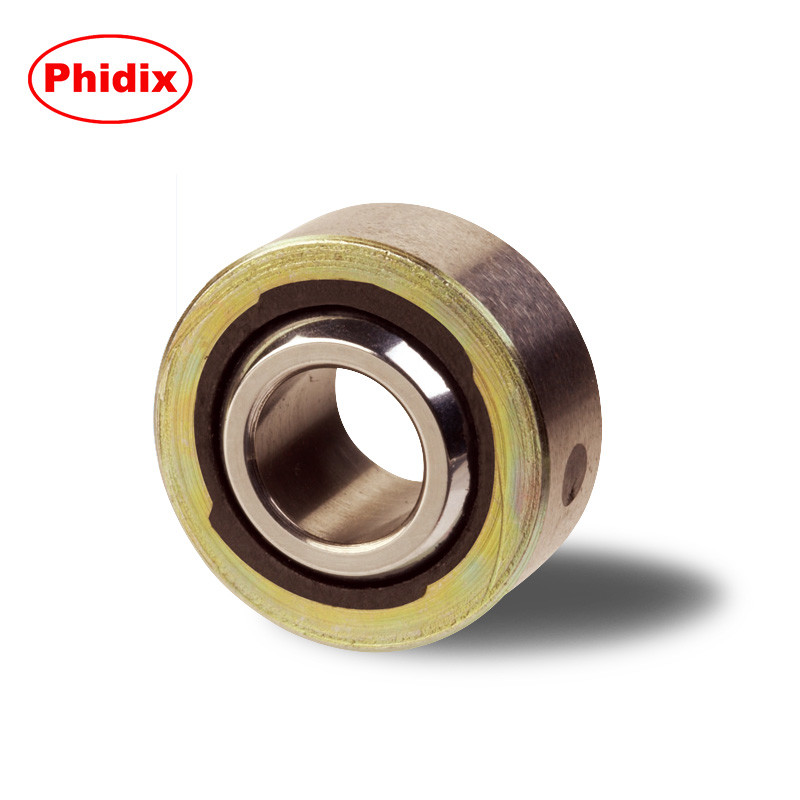

COM - P Spherical Ball Bearing Molded Race Self Lubricating Loader Slot Design

COM - P Spherical Ball Bearing , Molded Race , Self - Lubricating , Loader Slot Design

Product Description

Our COM-P Series is our basic precision molded race and metal reinforced offering within our line of spherical bearings. This lower cost version is suitable for a wide variety of OEM and MRO applications requiring press fit or snap ring retained bearing applications.
Our COM-P spherical bearings combine the popular fit and feel of our molded race rod ends with the strength of the loader slot design, giving COM-P enhanced strength. The plastic race of COM-P makes the bearing self-lubricating.COM-P is more economical and shows better wear characteristics and better strength than other standard plastic race bearings. The ball is loaded into the key slot and held in by both the fiberglass reinforced nylon and the metal housing. Unlike standard spherical bearings, our COM-P housing design can be plated on all surfaces for extra corrosion resistance and requires no machining after assembly.

Features

• Combines plastic and steel for enhanced strength, provides stronger radial and axial load capacity than standard molded race products
• Plastic molded raceway delivers self-lubricating low friction and moisture-resistant performance
• Excellent wear resistance
• Design allows for control of breakaway torque, adding to its application versatility
• Metal housing design is plated on all surfaces for extra corrosion resistance
• Can be used in a wide range of temperatures:-30°F — 220°F (-34°C — 104°C)

Applications

• Industrial equipment
• Construction equipment
• Racing
• Lawn & garden
• Agriculture

Specifications

Performance Comparison

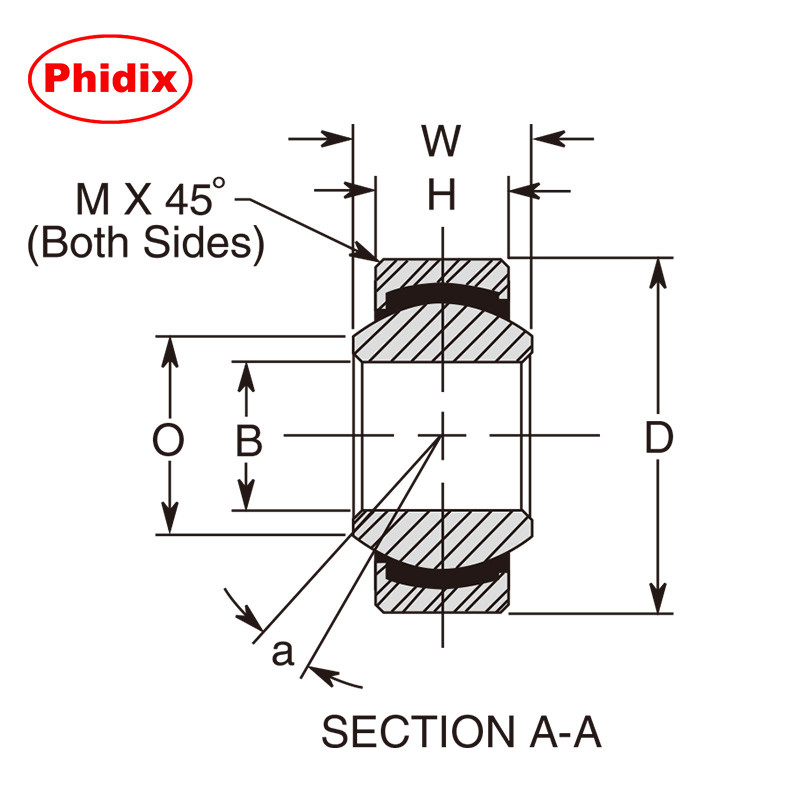

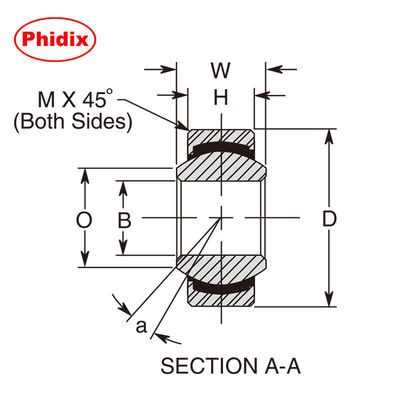

Technical Parameters
Molded Race, Self-Lubricating,Loader Slot Design

*Gablecraft Motlon Gontrols salas for ful platod body options., Bearing OD tolerance on plated versions (+.001/.003)

Material

Ball

• 52100 Steel
• Rc 56 Min.
• Hard Chrome Plated
Body
• Low Carbon Steel
• Zinc Plated, Yellow Dichromate Treated
• Body O.D. Is Ground After Plating*
Race
• Molded Self-Lubricating Reinforced Nylon

Packing and Shipping

Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX

FAQ

Q: What is the brand of the Control Cables?

A: The brand of the Control Cables is PHIDIX.

Q: What is the model number of the Control Cables?

A: The model number of the Control Cables is PHIDIX.

Q: Where is the Control Cables manufactured?

A: The Control Cables is manufactured in Shanghai.

Q: What are the specifications of the Control Cables?

A: Please contact us for the specifications of the Control Cables.
