Stainless Steel Mechanical Control Cable Push Pull Gear Shift Cable OEM Available

Certification
Good quality Control Cable Assembly for sales
Good quality Control Cable Assembly for sales
We received your samples and are very happy with the quality.

—— Grace Arndt

I received the cables. I am very pleased with the quality. Very good product.

—— Hans Boehner

I'm Online Chat Now

Stainless Steel Mechanical Control Cable Push Pull Gear Shift Cable OEM Available

China Stainless Steel Mechanical Control Cable Push Pull Gear Shift Cable OEM Available supplier
Stainless Steel Mechanical Control Cable Push Pull Gear Shift Cable OEM Available supplier Stainless Steel Mechanical Control Cable Push Pull Gear Shift Cable OEM Available supplier

Large Image :  Stainless Steel Mechanical Control Cable Push Pull Gear Shift Cable OEM Available

Product Details:

Place of Origin: Shanghai, China (Mainland)
Brand Name: CABLECRAFT/PHIDIX
Certification: ISO9001
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece/Pieces per Month
Contact Now
Detailed Product Description
Features: Tough/durable Materials Name: Oem Stainless Steel Push Pull Mechanical Control Cable Gear Shift Cable
Material: Stainless Steel Or Plated Carbon Steel Applications: Transmission Shift , Implement Control , Hydrostatic Drives
Typical Temperature Range: -65°F — 230°F EXT Efficiency Factor: .001



Oem Stainless Steel Push Pull Mechanical Control Cable Gear Shift Cable



【 Product Description 】

Push-Pull Standard Specifications A Dimension Grooved Swivel (in) Efficiency Factor Minimum Travel Push-Pull (in) Working Input Load (lbs) Push-Pull Maximum Input Overload (lbs) VLD Very Light Duty Cablecraft® Min Bend Radius 2؆ Bristow® Min Bend Radius 5؆ Backlash Factor .00015 Per Deg. of Bend A Dimension Threaded Swivel (in) LD Light Duty Cablecraft® Min Bend Radius 3؆ Bristow® Min Bend Radius 7؆ Backlash Factor .00020 Per Deg. of Bend 16° MINIMUM CONICAL SWIVEL 16° MINIMUM CONICAL SWIVEL MD Medium Duty Cablecraft® Min Bend Radius 5؆ Bristow® Min Bend Radius 9؆ Backlash Factor .00025 Per Deg



【 Features 】
• Typical temperature range
   -65°F — 230°F (Bristow)
   -65°F — 230°F (Utility)
   -65°F — 230°F (Low Friction EXT)
   -65°F — 230°F (Low Friction)
• Tough/durable materials
• Long lasting seals
• Environmentally protected

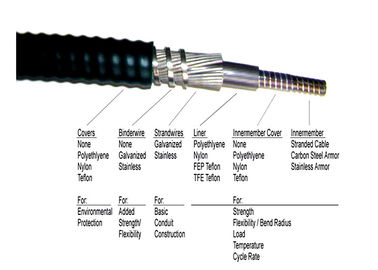

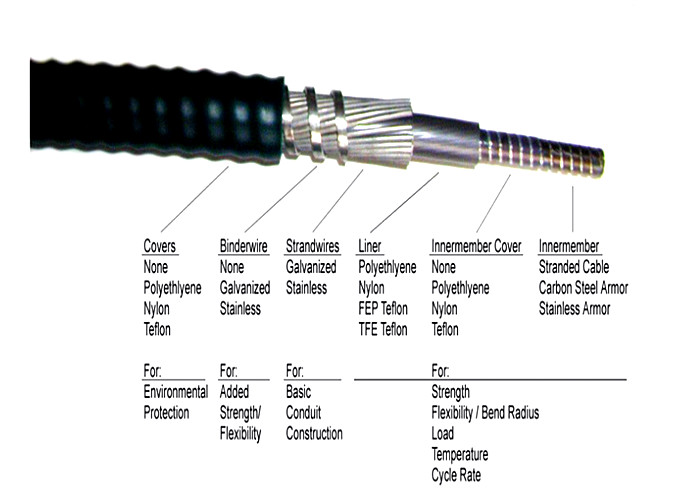

【 Material 】
• Stainless Steel or Plated Carbon

   Steel
• Plastic Coated Carbon Steel

   Conduit and Innermember
• Plastic Seals



【 Suggested End Fittings 】
• Full Range



【 Push-Pull Industrial 】

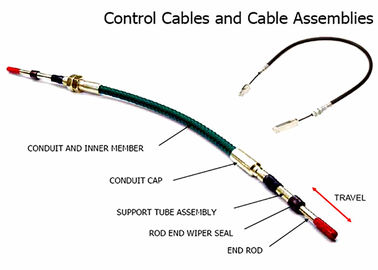

Cablecraft Motion Controls offers a full range of push-pull controls that provide a means of transmitting linear motion from one location to another. They offer ease of installation as well as superior performance.
The Bristow® Type control is an economical construction for applications which do not require tight bend radii, and are temperature rated for use from a low of -65°F to a peak of +230°F.
The Utility Style adds a binder wire for structural integrity and a tighter minimum bend radius than other controls.
Low Friction EXT controls have the same advantages as utility with an added plastic covered innermember which provides improved efficiency.
Low Friction controls provide the standard of excellence for industrial controls. Features include a binder wire for structural integrity, tight minimum bend radius, and PTFE covered innermember for the ultimate in efficient, smooth operation. Temperature rated for use from a low of -65°F to a peak of +230°F, they will provide long life in the most demanding applications.



【 Push-Pull Standard Specifications 】

Stainless Steel Mechanical Control Cable Push Pull Gear Shift Cable OEM Available

Efficiency Factor
• Input Force = (Output Load x Total Degrees of Bend x Efficiency Factor) + Output Load
For Bristow & Utility Efficiency
• Factor = .002
For Low Friction EXT & Low Friction
• EXT Efficiency Factor = .001
Note: Efficiency will be slightly reduced in applications when output load is substantially less than

          rated loads.

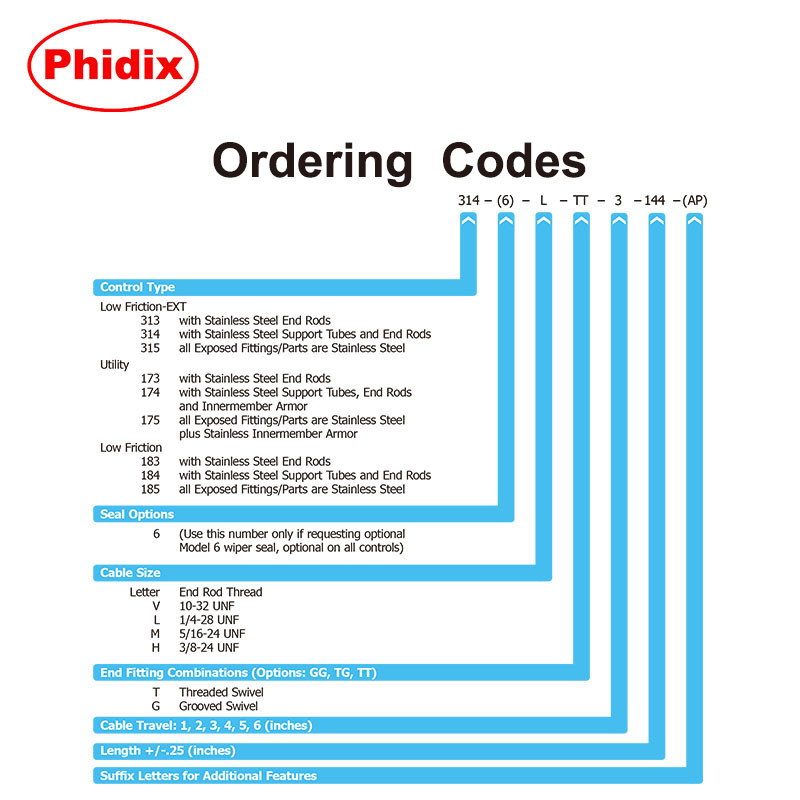

【 Push- Pull Standard Order Code 】

Stainless Steel Mechanical Control Cable Push Pull Gear Shift Cable OEM Available
