Push Pull Control Cable Assembly Simple Install Easy Maintain For Mechanical Starter

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
We received your samples and are very happy with the quality.

—— Grace Arndt

I received the cables. I am very pleased with the quality. Very good product.

—— Hans Boehner

I'm Online Chat Now

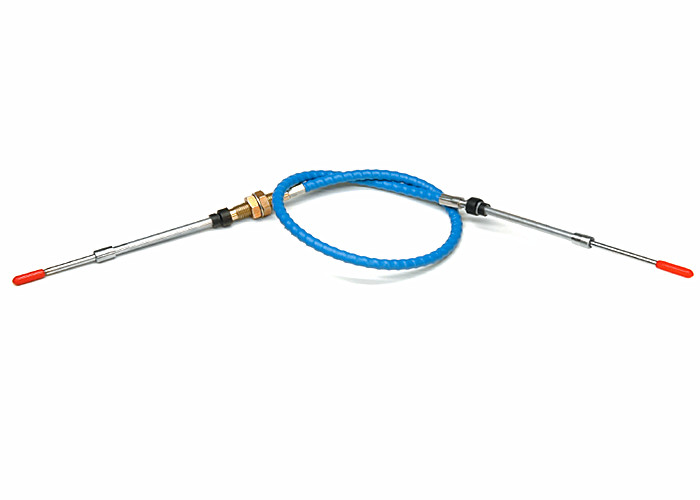

Push Pull Control Cable Assembly Simple Install Easy Maintain For Mechanical Starter

Push Pull Control Cable Assembly Simple Install Easy Maintain For Mechanical Starter
Push Pull Control Cable Assembly Simple Install Easy Maintain For Mechanical Starter Push Pull Control Cable Assembly Simple Install Easy Maintain For Mechanical Starter

Large Image :  Push Pull Control Cable Assembly Simple Install Easy Maintain For Mechanical Starter

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Detailed Product Description
Name: Flex Control Cable Applications: Mechanical Starter
Travel: 1"-6" Minimum Bend Radius: 3.00"
Operating Temperature: From -65°F — +165°F At Input End/+230°F At Output End Normal Load: 120lb Tension, 25lb Compression
Material: Nylon Covered Innermember / Plastic Covered Conduit / Stainless Steel
High Light:

control cable parts

,

push pull cable assemblies



Simple To Install And Easy To Maintain , Push Pull Standard Control Cable Assembly



【 Product Description 】
This push-pull control excels in applications where the use of a 2-cable pull-pull system with pulleys is undesirable. Typical applications include vent air controls and mechanical starters in aircraft. Travel is 1"-6".



【 Applications 】
• Vent air
• Mechanical starter
• Carb ice
• Aircraft



【 Material 】
• Nylon Covered Innermember
• Plastic Covered Conduit
• Stainless Steel

【 Features 】
• Travel: 1.00”- 6.00”
• Grooved conduit caps
• 10-32 end rod threads
• TT, TG & GG options are all available



【 Suggested End Fittings
• Full Range End Fittings



【 Push-Pull Order Code 】

Performance Push-Pull Control Cable

Notes: (Design Parameters)
Travel: 1"-6"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Normal load:
120lb tension, 25lb compression



Push Pull Control Cable Assembly Simple Install Easy Maintain For Mechanical Starter 0

Push Pull Control Cable Assembly Simple Install Easy Maintain For Mechanical Starter 1

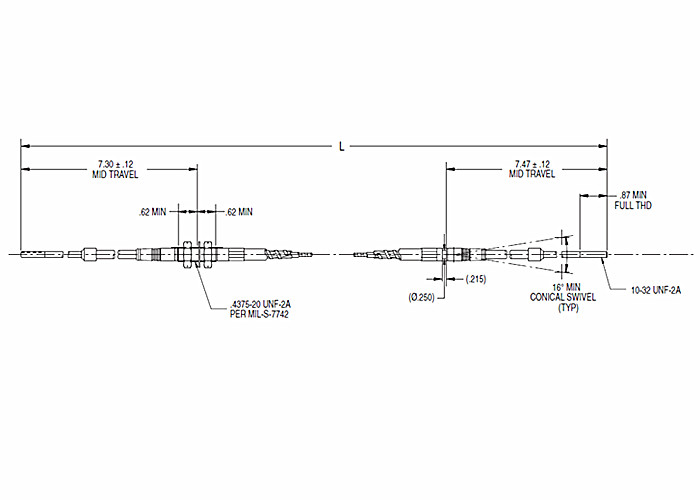

All line art dimensions are represented in inches
