High Performance Mechanical Control Cable Push Pull Control Cable

High Performance Mechanical Control Cable Push Pull Control Cable

  • High Light

    push pull control cable

    ,

    gear shift control cable

  • Name
    Push Pull Control Cable
  • Marine Applications
    Marine
  • Travel
    3.00"
  • Bulkhead Type
    Threaded
  • Conduit Caps
    Stainless Steel
  • Operating Temperature
    -65 To 350 ºF
  • End Rod Threads
    10-32
  • Typ
    Transmission Control
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7-40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    888 Piece/Pieces per Month

High Performance Mechanical Control Cable Push Pull Control Cable


Mechanical Control Cable Push Pull High Performance Control Cables



【 Product Description 】

The new high performance Push-Pull Blue Max(TM) control cable series for applications such as marine throttle controls, marine trim controls, marine fuel shut off and various chassis and high performance racing applications. It's excellent for long runs with complicated cable routing, while also providing unparalleled efficiency for shorter runs. Cable lengths and appropriate end fittings can be custom engineered to customer specifications.

Blue Max(TM) offers higher efficiency ratings with less lost motion than any other existing control cable in the marketplace today. It offers a true 4-inch minimum bend radius, is lubricated for life, and has a binder wired, PTFE "sunshine" core conduit. The outer jacket is resistant to abrasions, gasoline, diesel, various corrosive chemicals and is capable of withstanding the most demanding environments.

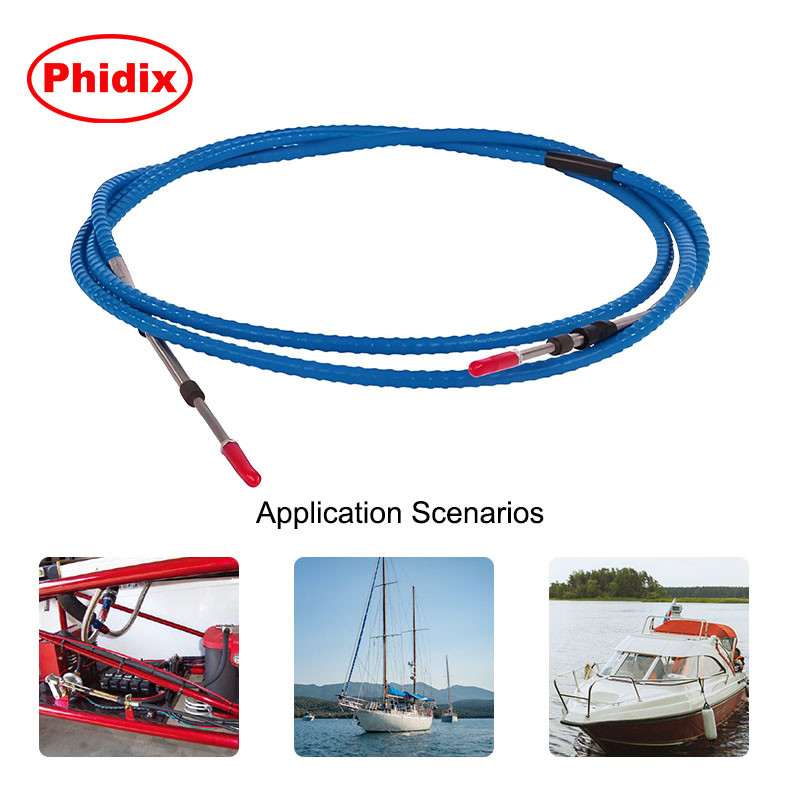

【 Marine Applications 】
• Shift
• Throttle
• Trim
Not Intended For Use as Steering Cable
【 Racing Applications 】
• Shift
• Fuel Shut Off
• Chute Release
Not Intended For Use as Steering Cable


【 Push-Pull High Performance 】
Blue MaxTM cable line is the high performance control cable to solve your push-pull requirements.
This superior control is born of aviation engineering design, with extreme low friction and minimal loss of motion. Offering unparalleled performance with the finest, smoothest feel in the industry.
This outstanding design is excellent for long runs with complicated cable routing while being extremely efficient on shorter runs.

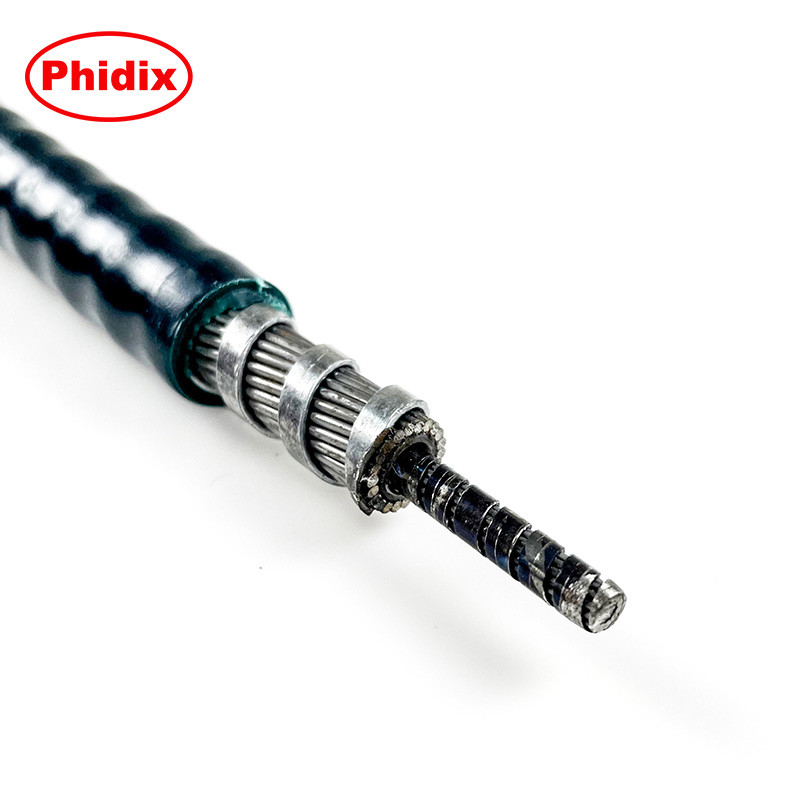

Along with a true 4-inch minimum bend radius, lubed for life, and binder wired PTFE core conduit, the outer jacket is resistant to abrasions, gasoline, diesel, and chemicals.
If you are seeing red over your control problems, make the Blue Max high performance line of cables your next move.

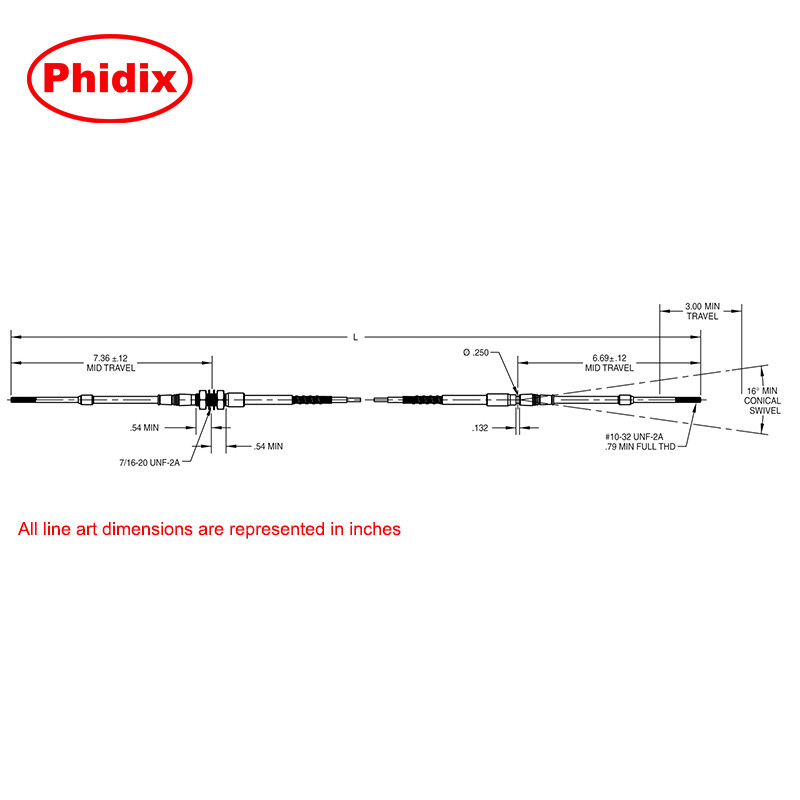

【 High Performance Push-Pull Control Cable 】

Notes: (Design Parameters) Operating temperature:
Travel: 3”minimum from -65°F to +350°F
Minimum bend radius: 4.00”

High Performance Mechanical Control Cable Push Pull Control Cable 0
All line art dimensions are represented in inches

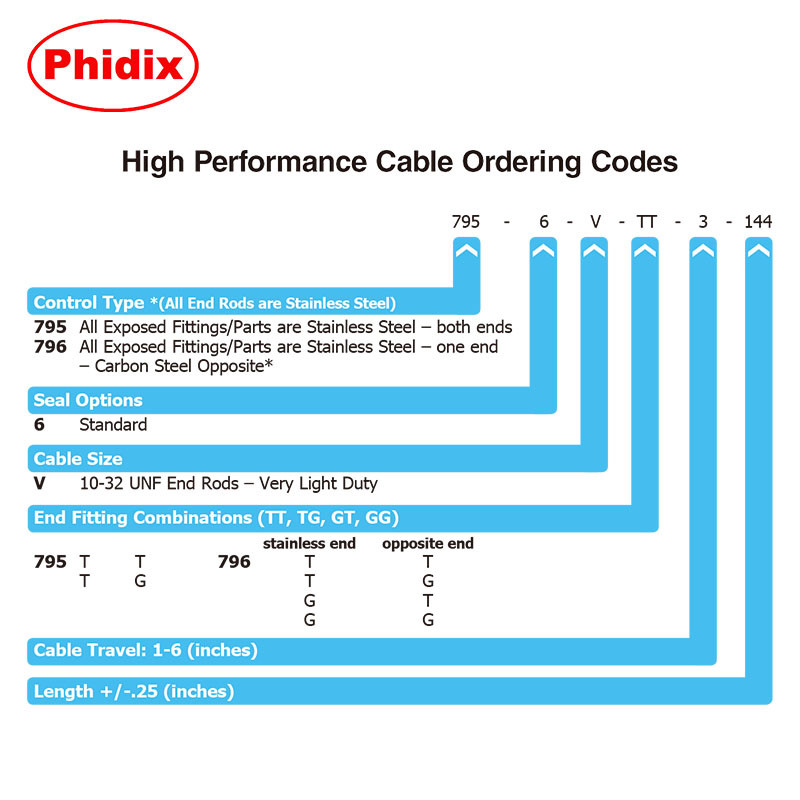

【 High Performance Cable Ordering Codes 】

Control Type —— 795

(All End Rods are Stainless Steel)

795   All Exposed Fittings/Parts are Stainless Steel – both ends
796  All Exposed Fittings/Parts are Stainless Steel – one end – Carbon Steel Opposite*
Seal Options —— 6
6    Standard
Cable Size ——  V
V 10-32 UNF End Rods – Very Light Duty
End Fitting Combinations (TT,TG, GT, GG) —— TT
stainless end                         opposite end
        795               T T                   796                 T T
                              T G                                          T G
                              G G                                         G T
                                                                              G G
Cable Travel: 3 (inches) —— 3
Length +/ -.25 (inches) —— 144
