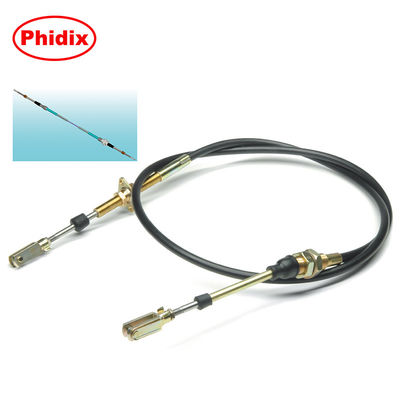

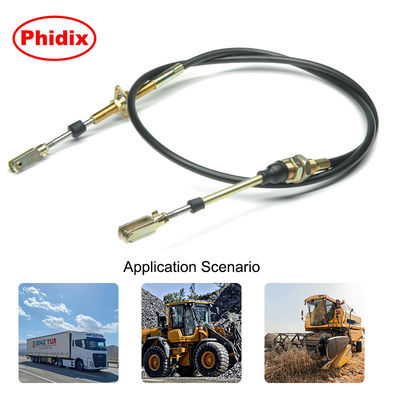

Push - Pull 4B Mechanical Control Cable Four Different Sizes Available For Clutch Controls

Push - Pull 4B Mechanical Control Cable Four Different Sizes Available For Clutch Controls
Push - Pull 4B Mechanical Control Cable Four Different Sizes Available For Clutch Controls Push - Pull 4B Mechanical Control Cable Four Different Sizes Available For Clutch Controls

Large Image :  Push - Pull 4B Mechanical Control Cable Four Different Sizes Available For Clutch Controls

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Detailed Product Description
Features: In Conjunction With Most Control Lever Systems Name: Custom Push Pull Cables
Material: Plated Steel , Stainless Steel , Plastic Coated Applications: Clutch Controls / Heavy Duty Lanyards
Type: Transmission Control HS Code: 87084050/87084020
High Light:

gear shift control cable

,

industrial control cables



Available In Four Different Sizes Push - Pull 4B Industrial Mechanical Control Cable



【 Product Description 】

The Push-Pull 4B Cables are commercial, cost effective product range for simple push-pull applications. The inner member is made up of multi-strand high tensile steel cable with an armored covering to prevent spreading under stressful loads and to give a low-friction sliding action. The wires are longitudinally aligned with a gradual spiral. The black UV stabilized polypropylene expelled over the whole to provide a hard-wearing jacket that can withstand temperatures from -40°C and 100°C. Moreover, it features a truck crane - cross link system, power take off, gear selection, hydraulic valve system, accelerator system and stainless steel end rod options.



【 Applications 】
• Clutch controls
• Heavy duty lanyards



【 Material 】
• Plated Steel Standard, Optional

  Stainless Steel
• Plastic Coated High Tensile Steel

   Lined Conduit
• Armored Push-Pull Steel Innermember
• Black polypropylene



【 Features 】
• Truck crane — cross link system
• In conjunction with most control lever

   systems
• Power take off
• Gear selection
• Hydraulic valve systems
• Accelerator systems
• Stainless steel end rod options available



【 Suggested End Fittings

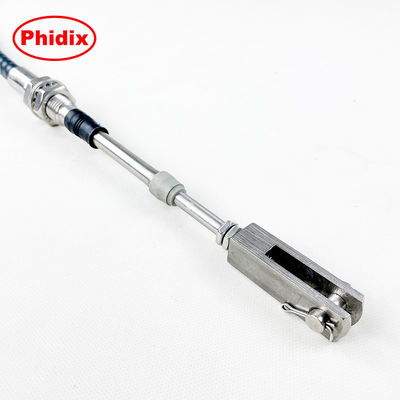

• Rod Ends

【 Push-Pull Industrial 】

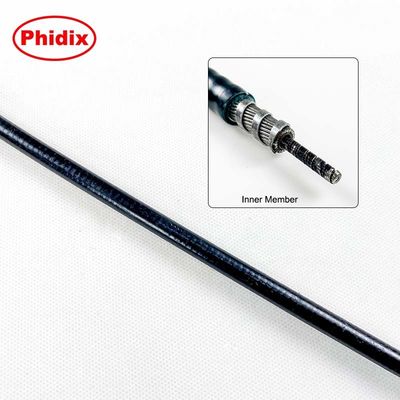

Commercial, cost effective product range for simple push-pull applications. Available in four different sizes. The inner member consists of a multi-strand high tensile steel cable, which is overwound with an armored covering to prevent spreading under compressive loads. This also gives a smooth surface for low-friction sliding action.
The conduit consists of low-friction hard plastic, reinforced by high tensile steel wires, of sufficient number and size to completely surround the plastic. The wires are laid longitudinally with a gradual spiral. Black UV stabilized polypropylene is extruded over the whole in a thickness sufficient to provide a tough hard-wearing jacket which will withstand working stressed between -40°C and 100°C.
It is highly resistant to abrasion and most organic and inorganic media. Available with swivel flange, in both metric and UNF thread mounting fittings.



【 Push-Pull 4B Specifications 】

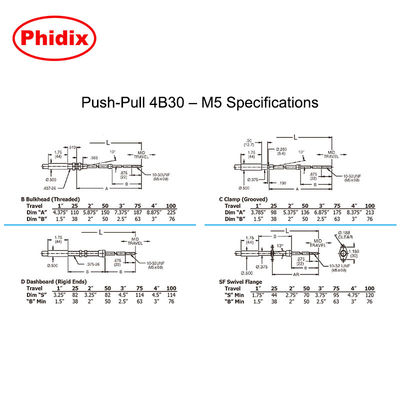

Push-Pull 4B30 — M5

Push - Pull 4B Mechanical Control Cable Four Different Sizes Available For Clutch Controls 0

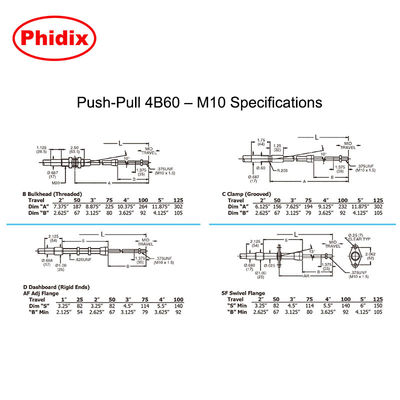

Push-Pull 4B60 — M10

Push - Pull 4B Mechanical Control Cable Four Different Sizes Available For Clutch Controls 1

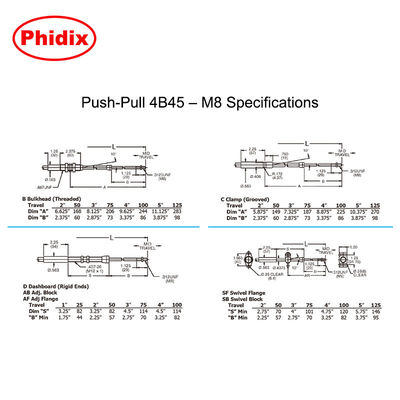

Push-Pull 4B45 — M8

Push - Pull 4B Mechanical Control Cable Four Different Sizes Available For Clutch Controls 2

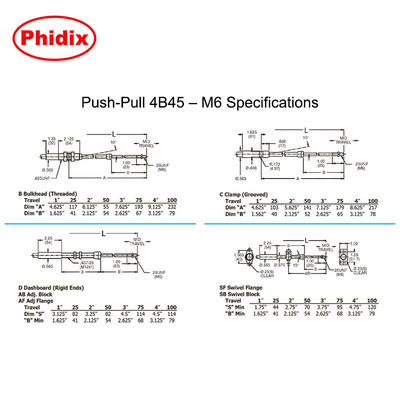

Push-Pull 4B45 — M6

Push - Pull 4B Mechanical Control Cable Four Different Sizes Available For Clutch Controls 3

All line art dimensions are represented as follows: in (mm)
Note: Threads available in both UNF and metric

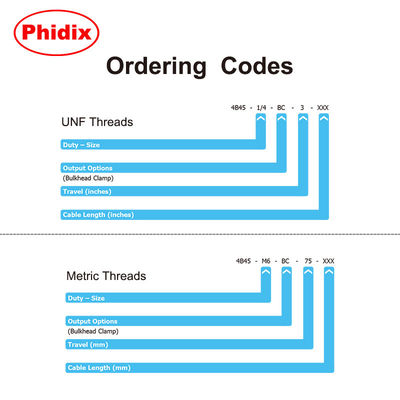

【 Push - Pull 4B Order Code 】

Ordering Codes — UNF Threads

Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX



Ordering Codes — Metric Threads

Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
