Horizontal Manual Transmission Gear Shifter Die Cast HGS Systems

1 Piece/Pieces
MOQ
Negotiation
Price
Horizontal Manual Transmission Gear Shifter Die Cast HGS Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Name: HGS Systems, 925 Series - Horizontal Gear Shifter System
Material: Pressure Die-Cast Aluminum
Feature: Easy Installation, Adjustment Free,Maintenance-free Life
Certificate: IATF16949
Applications: Bus, Coach & Truck Applications
Recommended Handle Length: 305 To 380 Mm
Approximate Recommended Handle Length: 12 To 15 "
Normal Working Load: 3kg TO 5kg
Operating Temperatures: -40℃ TO 120℃
Mass: 3.0 Kg
Highlight:

HGS Systems Gear Shifter

,

Horizontal Manual Transmission Gear Shifter

,

Die Cast Transmission Gear Shifter

Basic Infomation
Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Gear Controller
Payment & Shipping Terms
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 888 Piece/Pieces per Month
Product Description



HGS Systems, 925 Series - Horizontal Gear Shifter System


【 Product Description 】

The transportation industry has for many years searched for a reliable shift system to replace the cumbersome and maintenance-prone rod linkages commonly used in cab over trucks and rear engine buses. As the need has increased, vehicles

become more refined to include the complexities of floating cabs, curb noise restrictions and specialty vehicles of all types.We have developed a systems approach that now makes remote shifting easier for both the vehicle builder and the operator.This system provides a maintenance-free, cost-effective approach to remote manual transmission shifting.



Applications 】

• Center console mounted shifter
• Servo & non-servo assisted transmissions
• Bus, coach & truck applications
• Heavy/medium plant/agricultural vehicles
• Heavy/medium duty cable applicationsMedium to light duty throttle compactors



【 Features 】

• Easy installation, adjustment free
• Maintenance-free life
• Ends gear jump out
• Clean precise shifts
• No knob-to-cab relative movement in floating cabs
• No action required to tilt cab
• Vibration from drive train is not transmitted
• Reduced cab noise levels
• Low cost
• Installation design to customer requirements
• Flexible capability with different cable end fittings



Drawing

Horizontal Manual Transmission Gear Shifter Die Cast HGS Systems 0

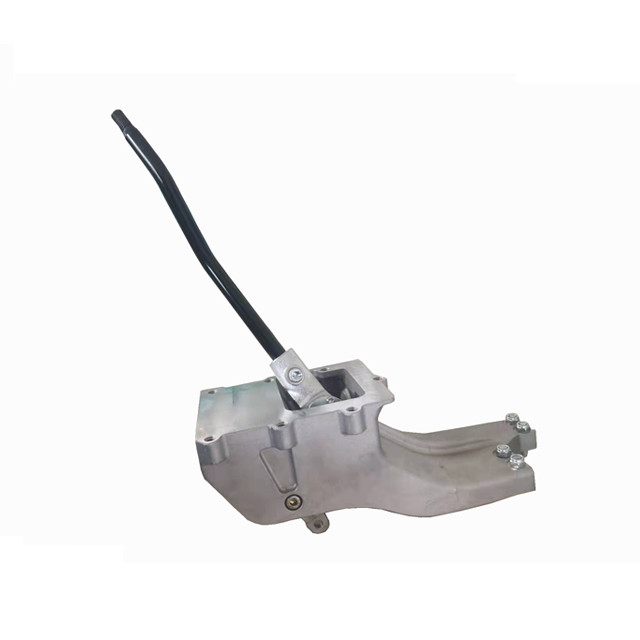

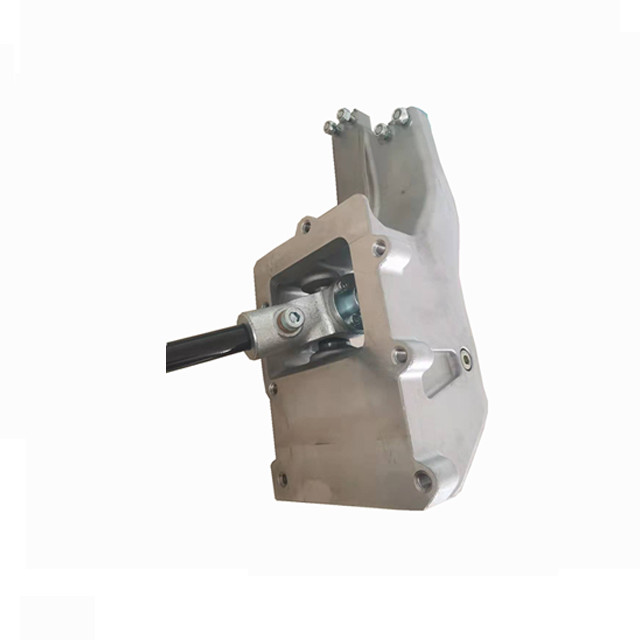

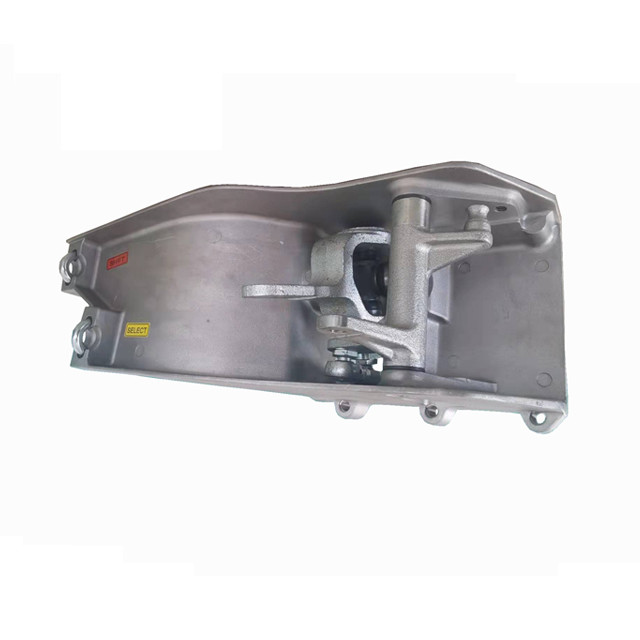

Real Picture

Horizontal Manual Transmission Gear Shifter Die Cast HGS Systems 1
