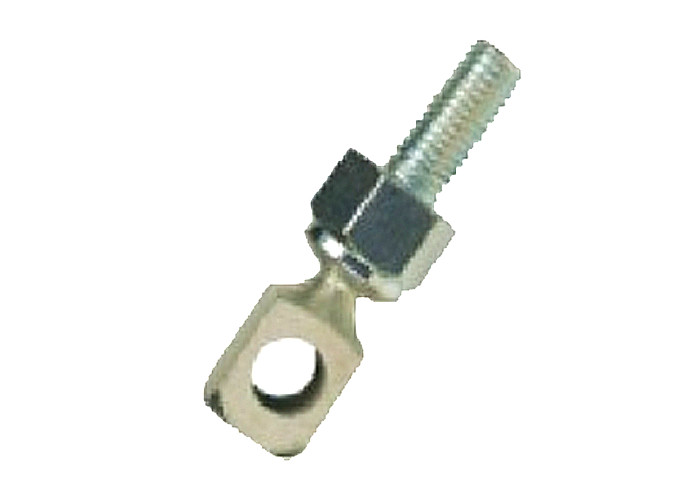

DH Control Swivel Series Rotary Swivel Joint Control Swivel Ball Joint
Product Description
The DH swivels are specifically designed to control applications where unlimited adjustments can be performed along a connecting rod. It is typically used in low load operations like HVAC or heating, ventilation and air conditioning, linear controls and light industrial applications.
This product offers in-line misalignment consoles that are appropriate for push applications.
Its broad variety of sizes and styles are available for each desired operation and with the use of a Buna N rubber disc in the installation, sleek and resonance-free performance is achieved. In addition, it offers a 5/16'' hardened self-locking screw and is compatible with 1/4'' or 5/1600 diameter control rods.
Features
• Suited to low load applications where infinite adjustment is desired along the entire length of the connecting rod
• Can be used with either 1/4" or 5/16" diameter control rods
• Head size:DH-.375" square
• Special set screws(self-locking and surfacehardened for wear resistance)provide increased holdingstrength Integral nut and lock washer optionally available
• Can be used in the wide range of temperatures:-60°F-250°F(-51°C- 121°C)
• Custom assemblies can be built to your specifications
Applications
Numerous low load mechanical motion transfer applications where infinite adjustment is desired, including:
• HVAC
• Linear controls
• Light industrial applications

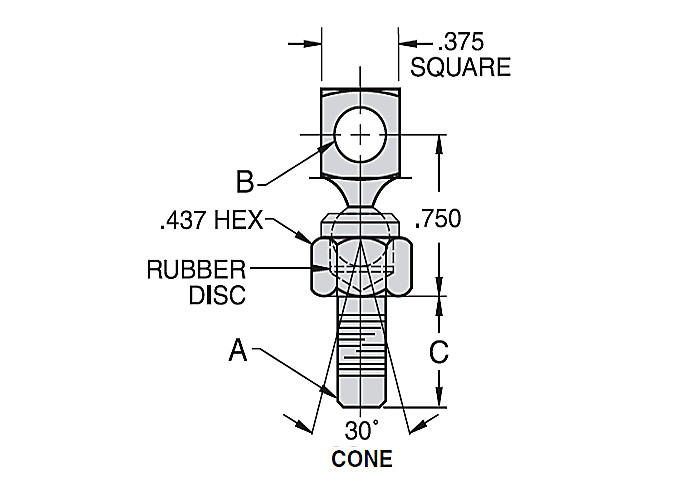

Technical Parameters
| DC/DH Chart | ||||||
| B | C | A | ||||
| Part Number |
+.005 -.002 |
± .015 | ||||
|
Less Integral Nut & Washer |
With Integral Nut & Washer |
Bore Diameter |
Shank |
Thread Size & Length |
Weight Less Integral Nut & Washer (Pounds) |
Weight With Integral Nut & Washer (Pounds) |
| DC1005F | DC1005FN | .328 | .312 | 10-32 x .250 | .047 | .050 |
| DC1207F | DC1207FN | .328 | .437 | 1/4-28 x .328 | .050 | .057 |
| DC1209F | DC1209FN | .328 | .562 | 1/4-28 x .500 | .052 | .058 |
| DC1207C | DC1207CN | .328 | .437 | 1/4-20 x .328 | .049 | .056 |
| DC1209C | DC1209CN | .328 | .562 | 1/4-20 x .453 | .051 | .057 |
| DC1310F | DC1310FN | .328 | .625 | 5/16-24 x .516 | .056 | .067 |
| DC1312F | DC1312FN | .328 | .750 | 5/16-24 x .641 | .059 | .070 |
| DH1209F-2 | .257 | .562 | 1/4-28 x .500 | .035 | ||
Chart Notes:
1. Swivels can be used with either 1/4" or 5/16" diameter control rods
2. DH Swivel Joint is available with an integral nut and lock washer to ease assembly. Specify by adding"N" to suffix. Example: DC1005FN
Material
Ball Joint Head & Base
• Low Carbon Steel
• Zinc Plated, Clear Chromate Treated
• Buna N Rubber Disc (provides vibration-free operation)
Self Locking Screw
• Low Carbon Steel, Heat Treated
• Zinc Plated, Clear Chromate Treated
Packing and Shipping
Ordering Codes — UNF Threads
Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX
Ordering Codes — Metric Threads
Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
