VGS 918 Series Manual Transmission Shifter Aluminum Material For Vehicles

Certification
Good quality Control Cable Assembly for sales
Good quality Control Cable Assembly for sales
We received your samples and are very happy with the quality.

—— Grace Arndt

I received the cables. I am very pleased with the quality. Very good product.

—— Hans Boehner

I'm Online Chat Now

VGS 918 Series Manual Transmission Shifter Aluminum Material For Vehicles

China VGS 918 Series Manual Transmission Shifter Aluminum Material For Vehicles supplier
VGS 918 Series Manual Transmission Shifter Aluminum Material For Vehicles supplier VGS 918 Series Manual Transmission Shifter Aluminum Material For Vehicles supplier

Large Image :  VGS 918 Series Manual Transmission Shifter Aluminum Material For Vehicles

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: VGS 918

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece/Pieces per Month
Contact Now
Detailed Product Description
Name: Custom Manual Shifter Weight: 1.1kg (2.4lb.)
Operating Temperatures: -40°C To 120°C (-40°F To 248°F) Recommended Handle Lengths: 160mm To 220mm (6-¼" - 8-¼" Approx.)
Material: Aluminum Application: Small Commercial Vehicles / Light Plant/agricultural Vehicles



Manual Transmission System Gear Shifter VGS 918 Series Transmission Shift Controls



【 Product Description 】

The motion control system developed for this product makes remote shifting easier for both the operator and vehicle builder, while the system provides a cost-effective and maintenance-free approach to remote manual transmission shifting, based on the proven quality and performance of the control cables in the low friction series. The shifter is mounted on the dash or center console and provides extra stability.



【 Technical Data 】

• Recommended handle lengths: 160mm to 220mm (6-¼" - 8-¼" approx.)

• Normal working load @ knob = 3kg (6.6 lb.) to 5kg (11lb.)

• Accidental overload @ knob = 100kg (220lb.)

• Operating temperatures: -40°C to 120°C (-40°F to 248°F)

• Weight: 1.1kg (2.4lb.)

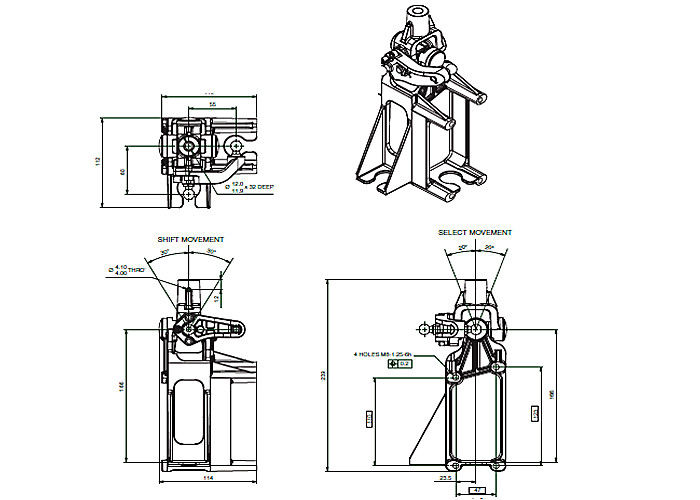

    3D CAD Models available upon request.



【 Features 】
• Easy installation, adjustment free
• Maintenance-free life
• Ends gear jump out
• Clean precise shifts
• No knob-to-cab relative movement in floating cabs
• No action required to tilt cab
• Vibration from drive train is not transmitted
• Reduced cab noise levels
• Low cost
• Installation design to customer requirements
• Flexible capability with different cable end fittings

VGS 918 Series Manual Transmission Shifter Aluminum Material For Vehicles
