Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis

China Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis supplier
Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis supplier Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis supplier

Large Image :  Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Contact Now
Detailed Product Description

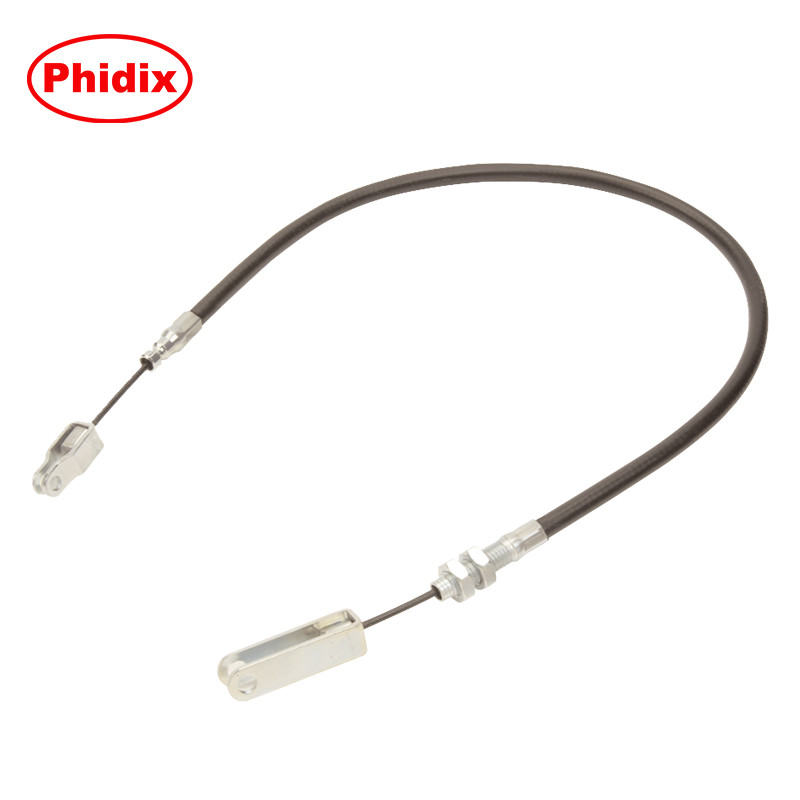

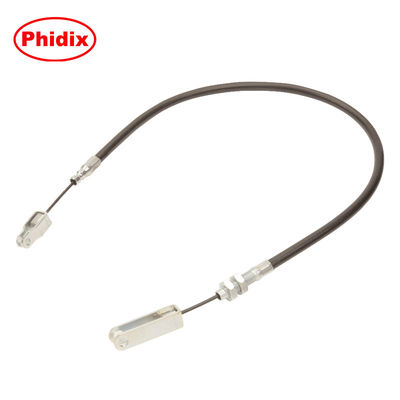

Name: Custom Push Pull Cables Applications: Park Brakes
Material: Carbon Steel And Plastic High Load Capacity: 1500lb Loads
Low Deflection: 3000lb Loads Installed Bend Radius: Down To 5"
Type: Transmission Control

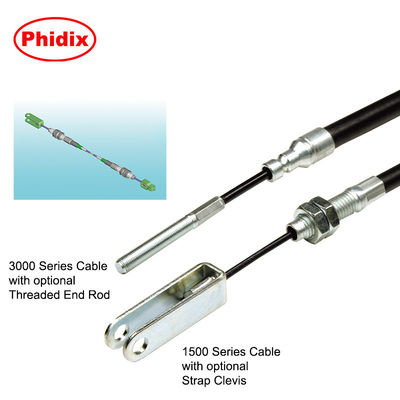

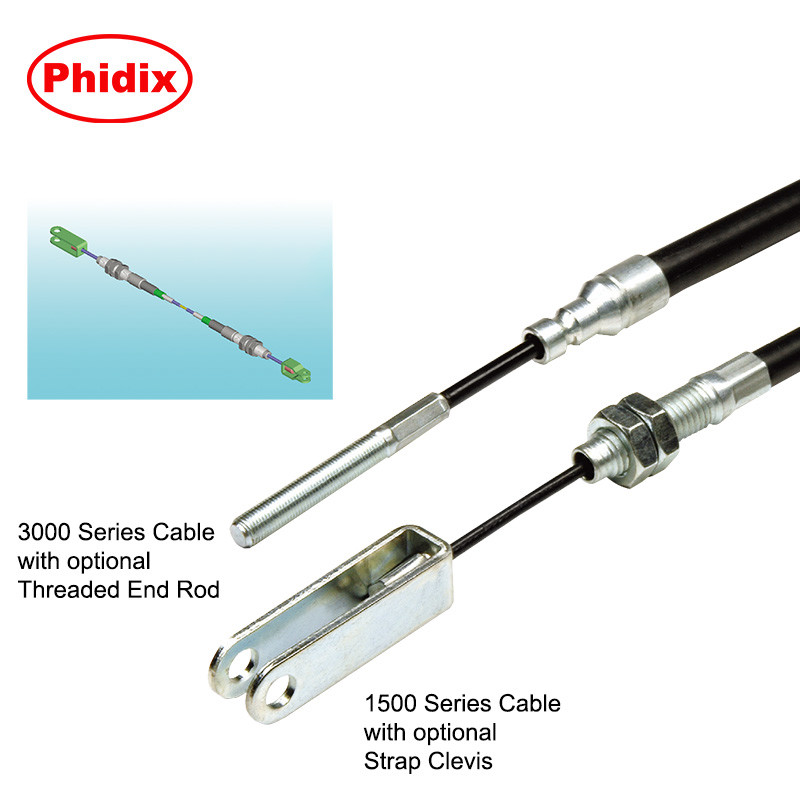

Pull - Only Brake 1500 & 3000 Control Cable Assembly With Optional Threaded End Rod And Strap Clevis



【 Product Description 】

Pull-only brake controls are highly flexible. They have been specifically developed for transmission of pull motion from one mechanical device to another by eliminating the need for bellcranks, rods, as well as other stiff mechanical linkages.
The controls are particularly suitable for applications in need of an increased load capacity and lower deflection. An ideal example is a cable widely used in a vehicle parking brake operation.
The brakes can be installed with ease and require low maintenance. These pull controls are widely used on a variety of mechanical devices.



【 Applications 】
• Park brakes
• Pull-pull cable systems



【 Material 】
• Carbon Steel and Plastic Steel

【 Suggested End Fittings
• All 1500 & 3000lb Brake Cable Fittings
• Rod Ends
• Clevises



【 Pull-Only Brake 1500lb Series 】

Ultimate Load: 1500lb Minimum Bend Radius: 5”
  Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis
Grooved End Fittings
Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis


Threaded End Fittings

48°Clip-Lock End Fitting Clip-Lock End Fitting
 Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis

Ball End Eye End Cable Stop
Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis


【 Pull-Only Brake 3000lb Series 】

Ultimate Load: 3000lb Minimum Bend Radius: 7”
  Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis

Grooved End Fittings
Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis

Threaded End Fittings 48°Clip-Lock End Fitting Clip-Lock End Fitting
Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis

Ball End Eye End Cable Stop
Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis


【 Pull-Only Brake Specifications 】

Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis



Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis

All line art dimensions are represented in inches



【 Pull-Only Brake Order Code 】

Industrial Pull-Only Brake
Control Cables Pull - Only Brake Cables With Threaded End Rod / Strap Clevis

To specify a pull-only brake, the following information must be given in the order listed:
1. Left innermember end fitting part
number.
2. Left conduit end fitting part number.
3. Length “A” between conduit fitting

reference points in inches.
4. Right conduit end fitting part number.
5. Right innermember end fitting part

number.

  6. Length “L” of innermember assembly
between fitting reference points in inches.
7. Travel of the innermember in the conduit

in inches.(Note: dimensions “L” must be
sufficiently greater than dimension “A” to
allow desired travel).
*Removable items should be listed separately.

【Ordering Codes】

Left Innermember End Fitting Part Number —— CS551
(Clevis End Fitting with Cable Stop)
Left Conduit End Fitting Part Number —— 072
(Grooved Conduit End Fitting)
Length of Conduit Assembly —— 54
(54") “A” Dimension
Right Conduit End Fitting Part Number —— 070
(Threaded Conduit End Fitting)
Right Innermember End Fitting Part Number —— TE505
(Threaded Conduit End Fitting)
Length of Innermember Assembly —— 64.5
(64.5") “L” Dimension
Travel (inches) —— 6
(6")
