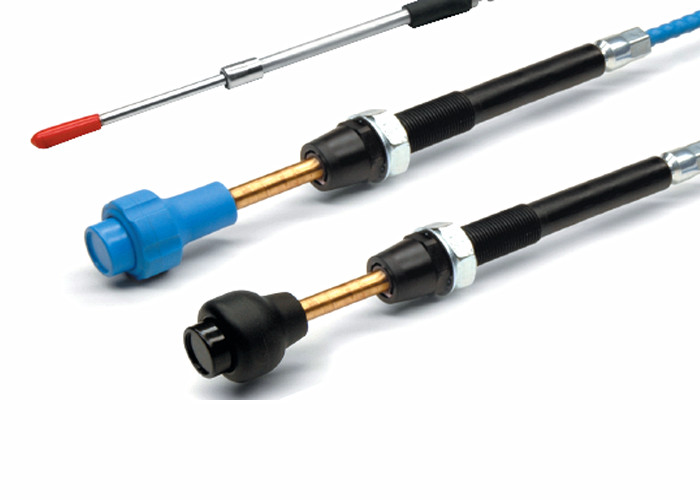

OEM Universal Throttle Control Cable Assembly 565 - 550 Series Standard Output

China OEM Universal Throttle Control Cable Assembly 565 - 550 Series Standard Output supplier
OEM Universal Throttle Control Cable Assembly 565 - 550 Series Standard Output supplier OEM Universal Throttle Control Cable Assembly 565 - 550 Series Standard Output supplier

Large Image :  OEM Universal Throttle Control Cable Assembly 565 - 550 Series Standard Output

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Contact Now
Detailed Product Description
Name: Universal Throttle Control Cable Lost Motion: .030" + .0004 Per Degree Of Bend With ± 5.0lb Of Force
Stroke: 3.00" Minimum Bend Radius: 3.00"
Operating Temperature: From -65°F — +165°F At Input End/+230°F At Output End Material: Stainless Steel Or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit And Innermember / Plastic Seal / Plastic Knob
Normal Load: ±20lb



Standard Output —— Throttle 565 - 550 Series Control Cable Assembly Push Pull Control Head



【 Product Description 】

We can design and manufacture a wide range of aircraft cables. Our mixture, prop/pitch, and throttle micro adjust controls are compliant with FAA requirements. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. Rotating the knob counter-clockwise retracts the output in the finite mode, and clockwise extends.

Four and one-half turns results in 1[1] of linear travel. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications influenced by excessive vibration. A friction lock (only) control head is also available.Various output configurations are available to suit specific applications. The ordering code and technical descriptions show these choices.



【 Applications 】
• General aviation aircraft
• Throttle control
• Mixture control
• Prop/pitch control

【 Features 】
• Glass filled nylon control head
• Travel: 3.00" maximum
• Bend radius:3.00" minimum & 7.00" minimum
• Operating temp:-65°F — 165°F (input)  230°F (output)

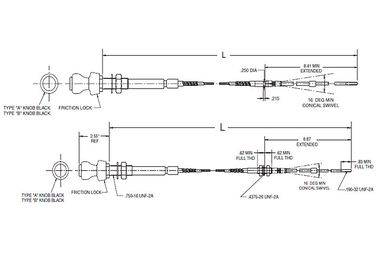

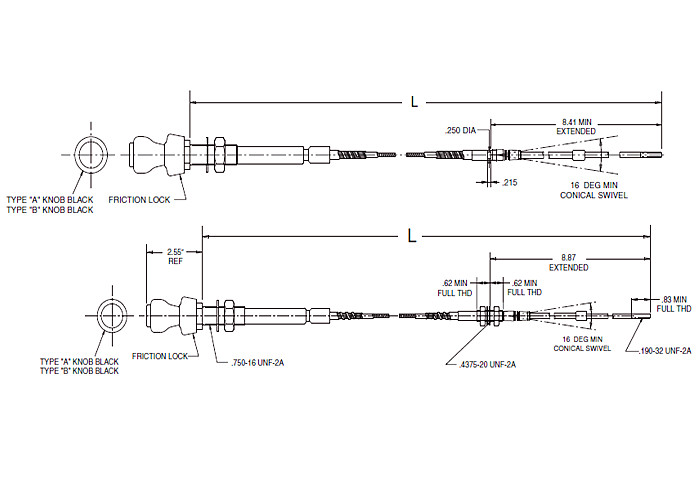

【 Standard Output - Throttle 565-550 】

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius:
3.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Lost motion: .030" + .0004 per
degree of bend with ± 5.0lb of force
Normal load: ±20lb
Glass filled nylon control head.
