Simple Install Gear Change Cables , 4B45 - M6 Series Universal Push Pull Cables

Simple Install Gear Change Cables , 4B45 - M6 Series Universal Push Pull Cables

  • High Light

    control cable parts

    ,

    push pull cable assemblies

  • Features
    In Conjunction With Most Control Lever Systems
  • Name
    Push Pull Cable Assemblies
  • Material
    Plated Steel , Stainless Steel , Plastic Coated
  • Applications
    Clutch Controls / Heavy Duty Lanyards
  • Type
    Transmission Control
  • HS Code
    87084050/87084020
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7 - 40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece / Pieces per Month

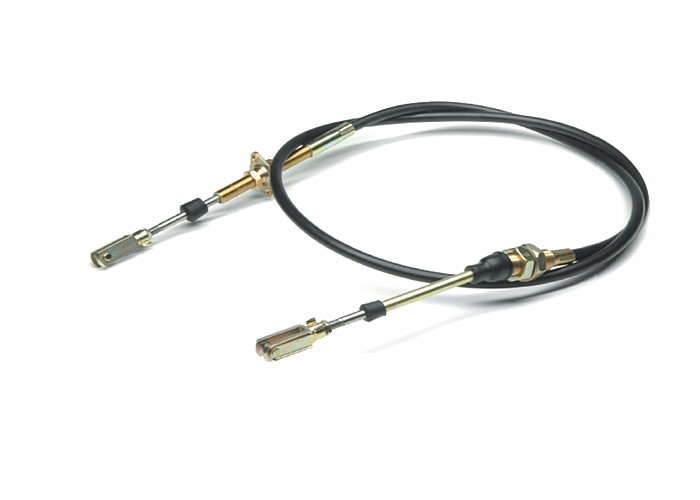

Simple Install Gear Change Cables , 4B45 - M6 Series Universal Push Pull Cables



Gear Change Cable , Pull Pull 4B Control Cable , Push Pull 4B45 - M6 Series



【 Product Description 】
Commercial, cost effective product range for simple push-pull applications. Available in four different sizes. The inner member consists of a multi-strand high tensile steel cable, which is overwound with an armored covering to prevent spreading under compressive loads. This also gives a smooth surface for low-friction sliding action.
The conduit consists of low-friction hard plastic, reinforced by high tensile steel wires, of sufficient number and size to completely surround the plastic. The wires are laid longitudinally with a gradual spiral. Black UV stabilized polypropylene is extruded over the whole in a thickness sufficient to provide a tough hard-wearing jacket which will withstand working stressed between -40°C and 100°C.
It is highly resistant to abrasion and most organic and inorganic media. Available with swivel flange, in both metric and UNF thread mounting fittings.



【 Applications 】
• Clutch controls
• Heavy duty lanyards



【 Suggested End Fittings
• Rod Ends

【 Material 】
• Plated Steel Standard, Optional
 Stainless Steel
• Plastic Coated High Tensile Steel
 Lined Conduit
• Armored Push-Pull Steel Innermember
• Black polypropylene

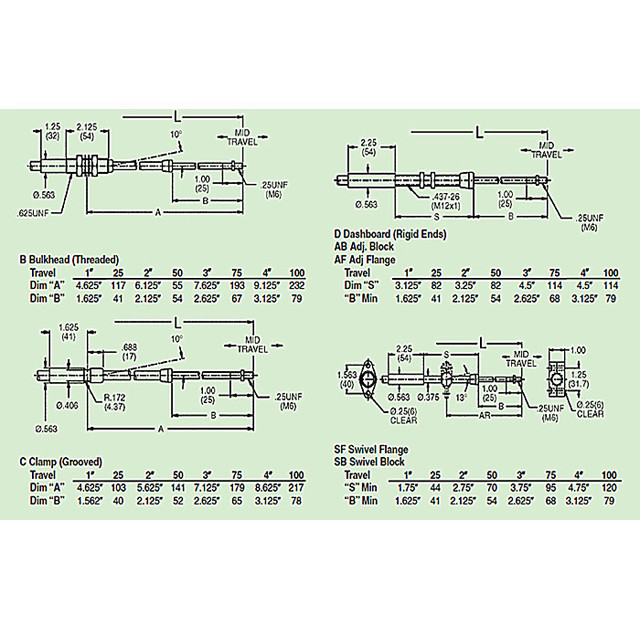

【 Push-Pull 4B45 — M6 】

Simple Install Gear Change Cables , 4B45 - M6 Series Universal Push Pull Cables 0

All line art dimensions are represented as follows: in (mm)
Note: Threads available in both UNF and metric



【 Push - Pull 4B Order Code 】

Ordering Codes — UNF Threads

Duty — Size —— ¼
Output Options (Bulkhead Clamp) —— BC
Travel (inches) —— 3
Cable Length (inches) —— XXX



Ordering Codes — Metric Threads

Duty — Size —— M6
Output Options (Bulkhead Clamp) —— BC
Travel (mm) —— 75
Cable Length (mm) —— XXX
