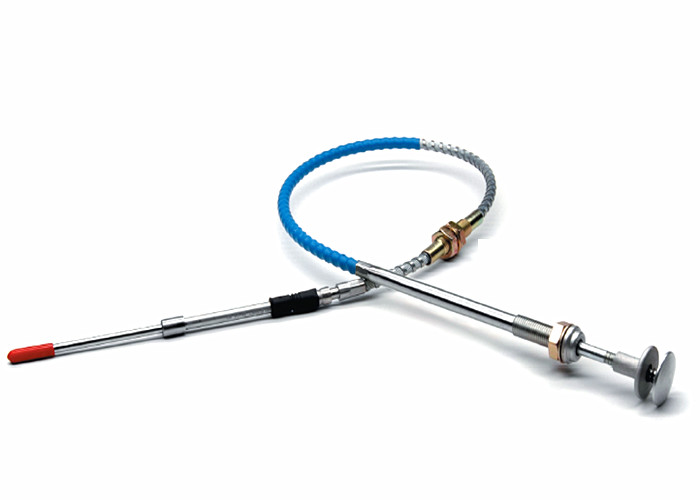

Button Adjustable Throttle Locking Control Cables With High Temperature Resistance

Button Adjustable Throttle Locking Control Cables With High Temperature Resistance
Button Adjustable Throttle Locking Control Cables With High Temperature Resistance Button Adjustable Throttle Locking Control Cables With High Temperature Resistance

Large Image :  Button Adjustable Throttle Locking Control Cables With High Temperature Resistance

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece/Pieces per Month
Detailed Product Description
Features: High Temperature Resistance/Low Loss/Long Service Life Name: Button Lock Push Pull Control Head Control Cable Assembly With High Temperature Resistance And Long Service Life
Material: Stainless Steel Or Plated Carbon Steel HS Code: 87084050/87084020
Package: Wood Case /carton/ Bubble Film OEM No.: Customer Requirement
Size: Drawing Type: Transmission Control
High Light:

push pull cable assemblies

,

push pull cable parts



Button Lock Push Pull Control Head Control Cable Assembly With High Temperature Resistance And Long Service Life



【 Product Description 】
Button lock control head cables remotely operate and lock in position heater, ventilation, air conditioning or numerous other mechanisms needing adjustment.Depressing the center button allows pushing or pulling the knob to make course travel adjustments. Routing of the flexible cable allows installation options that are not possible with solid linkages. Various output configurations are available to suit a specific application. The ordering code and technical descriptions show available choices.



Applications
• Aircraft
• Heat control
• Vent control
• A/C control
• Engine cowl control


Features
• Travel: 3.00" minimum
• Bend radius: 3.00" minimum& 7.00" minimum
• Operating temperature: -65°F — 230°F
• Normal load (with swivel output fitting)
• 120lb tension
• 25lb compression

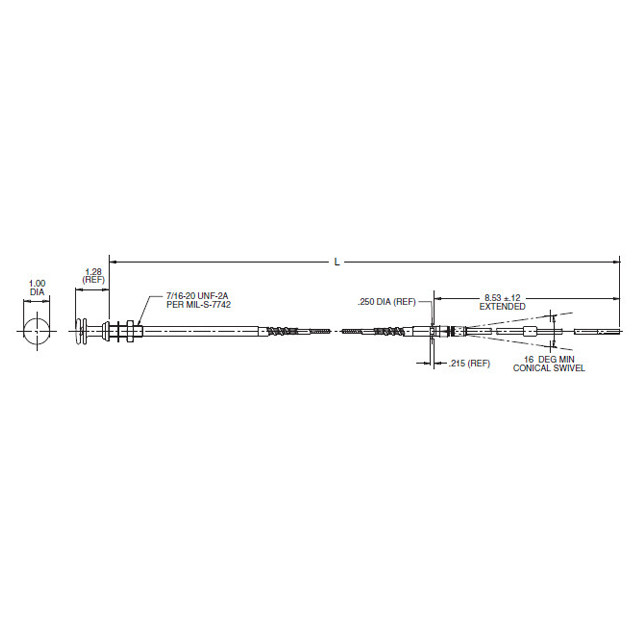

【 Standard Output - Button Lock 565-553 】

Notes: (Design Parameters) Operating temperature: Normal load:
Stroke: 3.00" from -65°F — +165°F at 120lb tension, 25lb
Minimum bend radius: 3.00" input end/+230°F at output end compression

      Button Adjustable Throttle Locking Control Cables With High Temperature Resistance 0



【 Solid Wire Output - Button Lock 565-554 】

Notes: (Design Parameters) Operating temperature:

Normal load:Unspecified

Stroke: 3.00" from -65°F — +165°F at (determined by
Minimum bend radius: 7.00" input end/+230°F at output end installation configuration)

   Button Adjustable Throttle Locking Control Cables With High Temperature Resistance 1

     Button Adjustable Throttle Locking Control Cables With High Temperature Resistance 2

      All line art dimensions are represented in inches
