Reliable Industrial Control Cables , 4B Push Pull Cable Assemblies Flexible Shaft

Reliable Industrial Control Cables , 4B Push Pull Cable Assemblies Flexible Shaft

  • High Light

    push pull cable assemblies

    ,

    push pull cable parts

  • Features
    In Conjunction With Most Control Lever Systems
  • Name
    Push Pull Control Cable
  • Material
    Plated Steel , Stainless Steel , Plastic Coated
  • Applications
    Clutch Controls / Heavy Duty Lanyards
  • Type
    Transmission Control
  • HS Code
    87084050/87084020
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7 - 40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece / Pieces per Month

Reliable Industrial Control Cables , 4B Push Pull Cable Assemblies Flexible Shaft

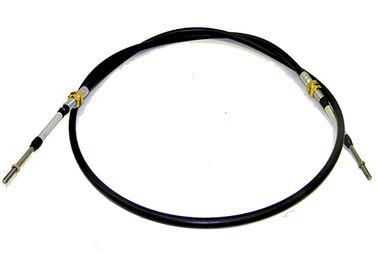

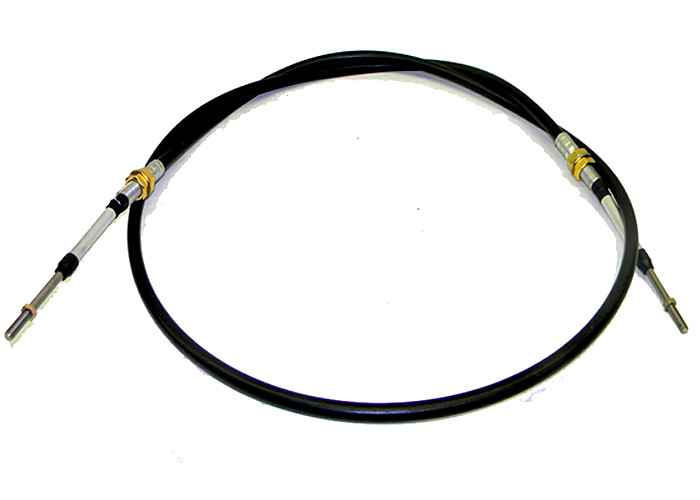

Push Pull 4B Industrial Control Cable Assembly Pull And Push Flexible Shaft



【 Product Description 】
Commercial, cost effective product range for simple push-pull applications. Available in four different sizes. The inner member consists of a multi-strand high tensile steel cable, which is overwound with an armored covering to prevent spreading under compressive loads. This also gives a smooth surface for low-friction sliding action.
The conduit consists of low-friction hard plastic, reinforced by high tensile steel wires, of sufficient number and size to completely surround the plastic. The wires are laid longitudinally with a gradual spiral. Black UV stabilized polypropylene is extruded over the whole in a thickness sufficient to provide a tough hard-wearing jacket which will withstand working stressed between -40°C and 100°C.
It is highly resistant to abrasion and most organic and inorganic media. Available with swivel flange, in both metric and UNF thread mounting fittings.



【 Applications 】
• Clutch controls
• Heavy duty lanyards



【 Material 】
• Plated Steel Standard, Optional

  Stainless Steel
• Plastic Coated High Tensile Steel

   Lined Conduit
• Armored Push-Pull Steel Innermember
• Black polypropylene

【 Features 】
• Truck crane — cross link system
• In conjunction with most control lever

   systems
• Power take off
• Gear selection
• Hydraulic valve systems
• Accelerator systems
• Stainless steel end rod options available



【 Suggested End Fittings
• Rod Ends



【 Push-Pull 4B Specifications 】



Push-Pull 4B30 — M5

Reliable Industrial Control Cables , 4B Push Pull Cable Assemblies Flexible Shaft 0



Push-Pull 4B60 — M10

Reliable Industrial Control Cables , 4B Push Pull Cable Assemblies Flexible Shaft 1



Push-Pull 4B45 — M8

Reliable Industrial Control Cables , 4B Push Pull Cable Assemblies Flexible Shaft 2



Push-Pull 4B45 — M6

Reliable Industrial Control Cables , 4B Push Pull Cable Assemblies Flexible Shaft 3

All line art dimensions are represented as follows: in (mm)
Note: Threads available in both UNF and metric

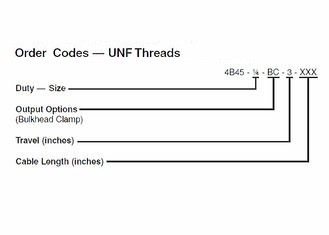

【 Push -Pull 4B Order Code 】

Reliable Industrial Control Cables , 4B Push Pull Cable Assemblies Flexible Shaft 4



Reliable Industrial Control Cables , 4B Push Pull Cable Assemblies Flexible Shaft 5
