Professional Mechanical Control Cable Assembly For Mechanical Starter

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
We received your samples and are very happy with the quality.

—— Grace Arndt

I received the cables. I am very pleased with the quality. Very good product.

—— Hans Boehner

I'm Online Chat Now

Professional Mechanical Control Cable Assembly For Mechanical Starter

Professional Mechanical Control Cable Assembly For Mechanical Starter
Professional Mechanical Control Cable Assembly For Mechanical Starter Professional Mechanical Control Cable Assembly For Mechanical Starter

Large Image :  Professional Mechanical Control Cable Assembly For Mechanical Starter

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Detailed Product Description
Name: Push Pull Standard Performance Control Cable Assembly Mechanical Control Cable Applications: Mechanical Starter
Travel: 1"-6" Minimum Bend Radius: 3.00"
Operating Temperature: From -65°F — +165°F At Input End/+230°F At Output End Normal Load: 120lb Tension, 25lb Compression
Material: Nylon Covered Innermember / Plastic Covered Conduit / Stainless Steel
High Light:

gear shift control cable

,

industrial control cables



Push Pull Standard Performance Control Cable Assembly Mechanical Control Cable



【 Product Description 】

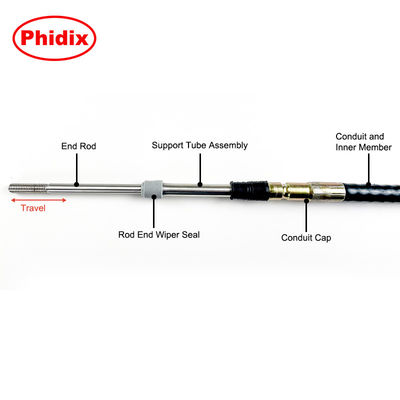

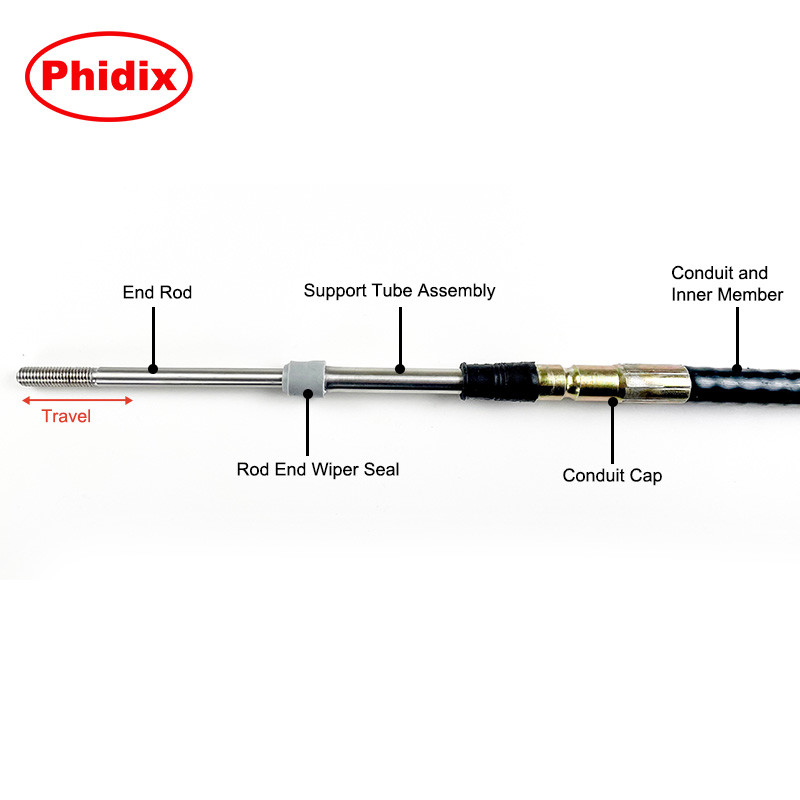

This Push-Pull control  is ideal for applications where a 2-cable pulley system won't do, such as in vent air interfaces and aircraft mechanical starters. It has conduit caps that are grooved, with TT, TG & GG options. The Push-Pull is made of high grade stainless steel and consists of an inner member enclosed in nylon and a conduit housed in plastic that guarantees durability and reliability for a long period of time.

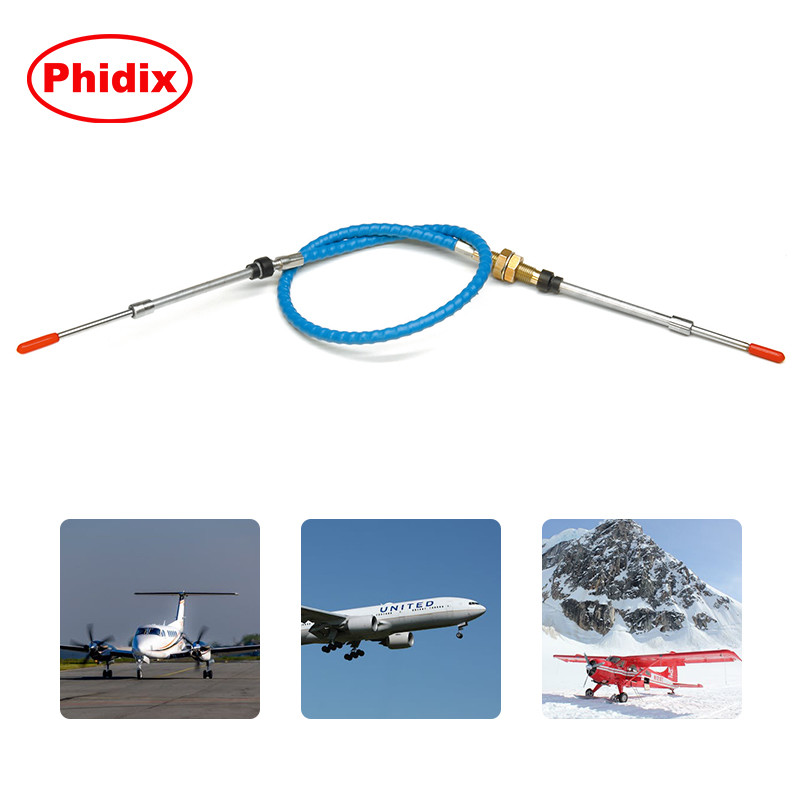

【 Applications 】
• Vent air
• Mechanical starter
• Carb ice
• Aircraft



【 Material 】
• Nylon Covered Innermember
• Plastic Covered Conduit
• Stainless Steel

【 Features 】
• Travel: 1.00”- 6.00”
• Grooved conduit caps
• 10-32 end rod threads
• TT, TG & GG options are all available



【 Suggested End Fittings


• Full Range End Fittings



【 Push-Pull Order Code 】

Performance Push-Pull Control Cable

Notes: (Design Parameters)
Travel: 1"-6"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Normal load:
120lb tension, 25lb compression



Professional Mechanical Control Cable Assembly For Mechanical Starter 0

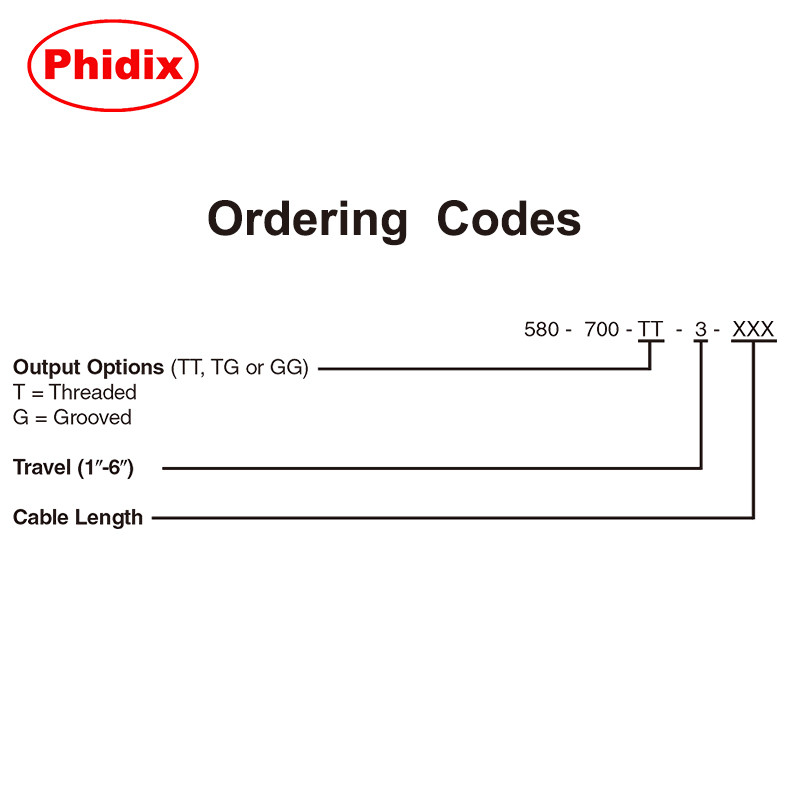

【 Ordering Codes 】

Output Options (TT, TG or GG) —— TT

T = Threaded
G = Grooved



Travel (1"-6") —— 3



Cable Length —— XXX

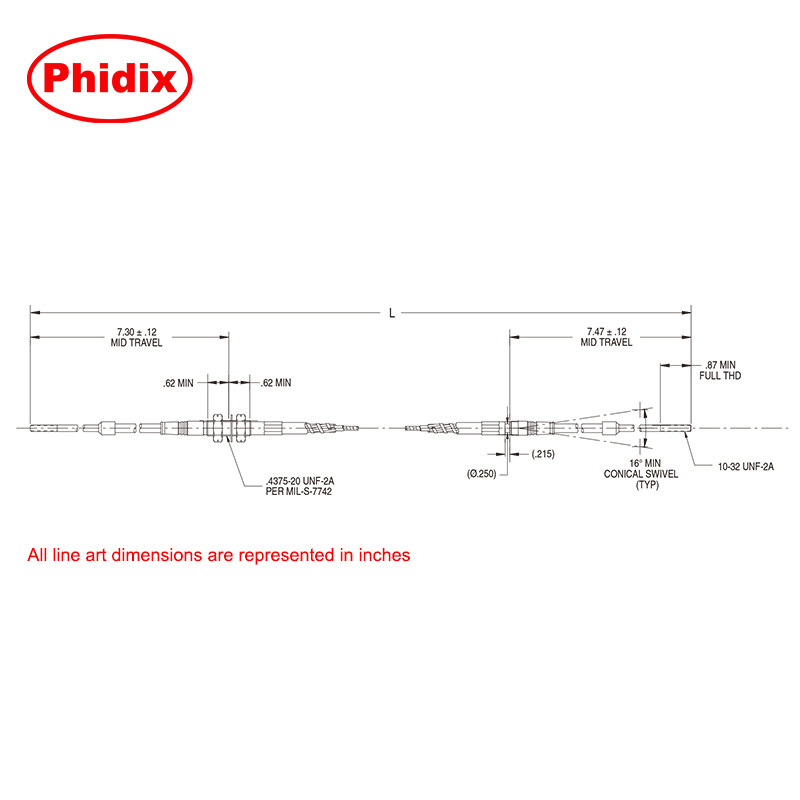

All line art dimensions are represented in inches
