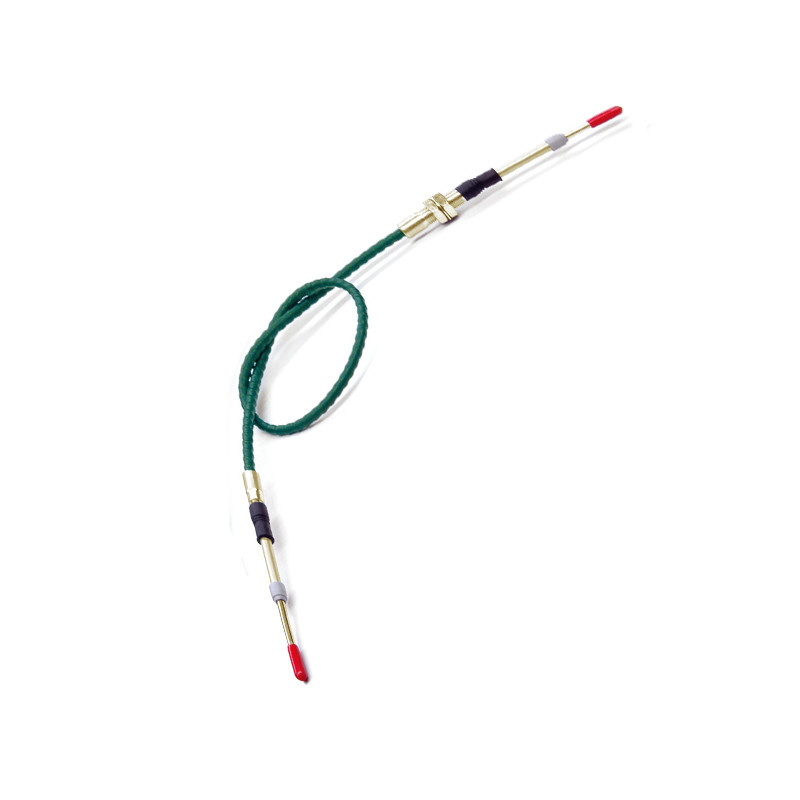

Our push-pull control cables provide smooth, low-friction motion transfer with precision and reliability. Designed for heavy-duty applications, these assemblies support stroke lengths from 1 to 6 inches and input loads up to 1000 lbs. Ideal for demanding environments like off-road equipment, agricultural machinery, and industrial automation.
Travel length: 1" to 6"
Working input load: 100 – 1000 lbs
Minimum bend radius: 2" to 9"
Available duty classes: Very Light to Heavy Duty (VLD to HD)
Low-friction PTFE-lined innermember
Optional stainless steel or plated carbon steel construction
Environmental protection with long-lasting seals
Custom end fittings available
| Duty Class | Travel Options | Working Load (lbs) | Max Input Load (lbs) | Min Bend Radius | A Dimension | Backlash Factor |
|
VLD |
1"- 5" | 40–120 | Up to 180 | 2" - 5" | 3.69–11.19 | 0.0015 /° bend |
| LD | 1" - 6" | 50–230 | Up to 350 | 3" - 7" | 4.00–11.50 | 0.0020 /° bend |
| MD | 1" - 6" | 100–400 | Up to 600 | 5" - 9" | 4.38–11.87 | 0.0025 /° bend |
| HD | 1" - 6" | 100–1000 | Up to 1500 | 6" | 5.19–12.69 | 0.0030 /° bend |
Used for remote mechanical actuation including:
Inner member: Plastic-coated carbon steel
Conduit: Stainless steel or plated carbon steel
Seals: Environmentally sealed plastic ends
End fittings: Wide range available (custom upon request)
Are you looking for a customized control cable solution? You can contact us online or by email, and we are more than happy to assist you
email:lisa.tu@phidixglobal.com
