Simple Control Cable Assembly Threaded Mount With Twist Lock Control Heads

Simple Control Cable Assembly Threaded Mount With Twist Lock Control Heads

  • High Light

    control cable parts

    ,

    push pull cable assemblies

  • Name
    Control Cable Assembly With Twist Lock Control Heads
  • Materials
    Plated Carbon Steel Corrosion-proof Control Heads
  • Feature
    High Temperature Resistance, Low Loss, Long Service Life
  • Cover Color Options
    Black Or As Per Requirements
  • Application
    Engine Shut Down/Engine Choke/Latch Operation/Valve Operation
  • Length
    Customized
  • Load
    100lb Maximum
  • Travel
    3” Maximum
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 Piece/Pieces
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7-40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece/Pieces per Month

Simple Control Cable Assembly Threaded Mount With Twist Lock Control Heads



Control Cable Assembly With Twist Lock Control Heads



【 Product Description 】

Twist Lock control heads are a robust and simple design with only one moving part. They are cost effective solutions to mechanically connecting and locking a manual input source to a remote output.



【 Common Applications 】

Engine shut down, engine choke, latch operation, valve operation



【 Features 】

• T-handle is free to travel the full length of the control until locked

• Rotating the T-handle 1/8 turn in either direction along the travel will secure loads up to 100 lb., yet unlocks with ease

• Especially effective when space is limited or rod linkage and bell cranks are not suitable choices



【 Technical 】

• Load: 100 lb. maximum

• Travel: 3” maximum

• Threaded mount



【 Material 】

• Plated carbon steel corrosion-proof control heads



【 Drawing

Simple Control Cable Assembly Threaded Mount With Twist Lock Control Heads 0

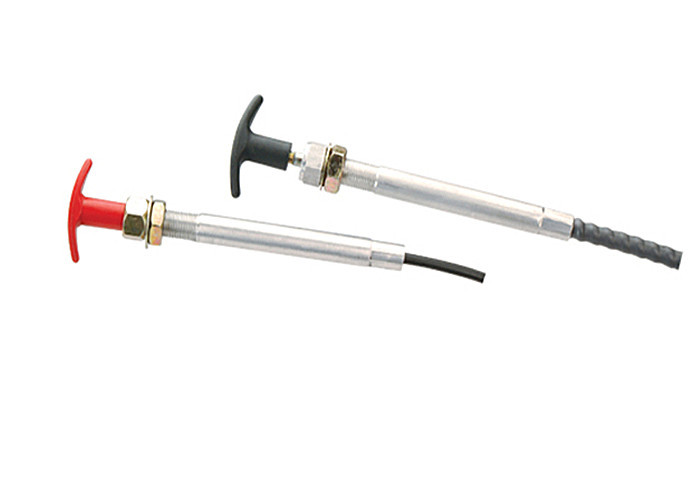

【 Real Picture 】

Simple Control Cable Assembly Threaded Mount With Twist Lock Control Heads 1
