Zinc Plated Rotary Swivel Joint DC Series Mechanical Motion Transfer Applications

China Zinc Plated Rotary Swivel Joint  DC Series Mechanical Motion Transfer Applications supplier
Zinc Plated Rotary Swivel Joint  DC Series Mechanical Motion Transfer Applications supplier Zinc Plated Rotary Swivel Joint  DC Series Mechanical Motion Transfer Applications supplier

Large Image :  Zinc Plated Rotary Swivel Joint DC Series Mechanical Motion Transfer Applications

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: DC

Payment & Shipping Terms:

Minimum Order Quantity: 10 Piece/Pieces
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece/Pieces per Month
Contact Now
Detailed Product Description
Features: Suited To Low Load Applications Where Infinite Adjustment Is Desired Along The Entire Length Of The Connecting Rod Name: Ball Joint Assemblies DC Series Rotary Swivel Joint
Head Size: .500" Round Applications: Light Industrial Applications
Range Of Temperatures: -60°F — 250°F (-51°C — 121°C) Material: Low Carbon Steel , Zinc Plated



Ball Joint Assemblies DC Series Rotary Swivel Joint



【 Product Description 】

The units are made from low carbon steel and are plated and dichromate treated for corrosion resistance. The set screws are made of low carbon steel, plated and dichromate treated for corrosion resistance. Set screws are case hardened. A rubber disc is used in the assembly.



【 Features 】
• Suited to low load applications where infinite adjustment is desired along the entire length of

the connecting rod
• Can be used with either 1/4" or 5/16" diameter control rods
• Head size:
DC — .500" round
• Special set screws (self-locking and surface hardened for wear resistance) provide

increased holding strength
• Integral nut and lock washer optionally available
• Can be used in the wide range of temperatures:
-60°F — 250°F (-51°C — 121°C)
• Custom assemblies can be built to your specifications
• DC style meets SAE specification J490
(DC: Type DC, Style 1; DH does not meet J490 specs)

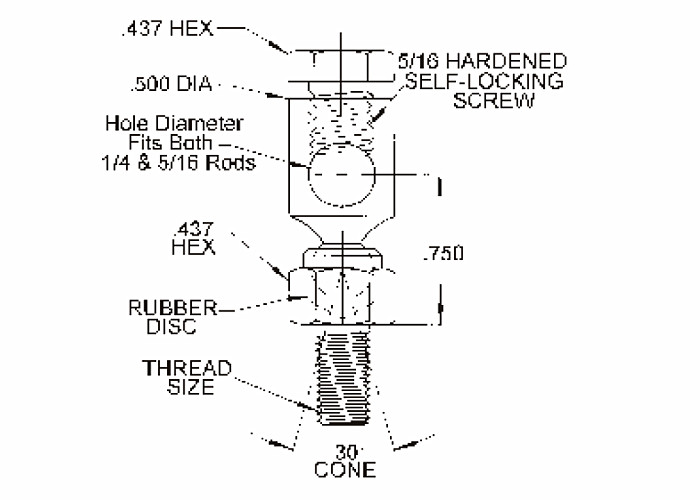

【 DC Control Swivels 】

Zinc Plated Rotary Swivel Joint  DC Series Mechanical Motion Transfer Applications
