Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable

China Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable supplier
Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable supplier Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable supplier

Large Image :  Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable

Product Details:

Place of Origin: Shanghai, China (Mainland)
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece/Pieces per Month
Contact Now
Detailed Product Description
Features: Tough/durable Materials , Long Lasting Seals Name: Control Cable Assemblies Are Available In A Wide Range Of Sizes And Materials
Material: Stainless Steel Or Plated Carbon Steel Applications: Transmission Shift , Implement Control , Hydrostatic Drives
Typical Temperature Range: -65°F — 230°F EXT Efficiency Factor: .001



Control Cable Assemblies Are Available In A Wide Range Of Sizes And Materials



【 Features 】
• Typical temperature range
   -65°F — 230°F (Bristow)
   -65°F — 230°F (Utility)
   -65°F — 230°F (Low Friction EXT)
   -65°F — 230°F (Low Friction)
• Tough/durable materials
• Long lasting seals
• Environmentally protected

【 Material 】
• Stainless Steel or Plated Carbon

   Steel
• Plastic Coated Carbon Steel

   Conduit and Innermember
• Plastic Seals



【 Suggested End Fittings 】
• Full Range



【 Push-Pull Industrial 】
We offer a full range of push-pull controls that provide a means of transmitting linear motion from one location to another. They offer ease of installation as well as superior performance.
The Bristow® Type control is an economical construction for applications which do not require tight bend radii, and are temperature rated for use from a low of -65°F to a peak of +230°F.
The Utility Style adds a binder wire for structural integrity and a tighter minimum bend radius than other controls.
Low Friction EXT controls have the same advantages as utility with an added plastic covered innermember which provides improved efficiency.
Low Friction controls provide the standard of excellence for industrial controls. Features include a binder wire for structural integrity, tight minimum bend radius, and PTFE covered innermember for the ultimate in efficient, smooth operation. Temperature rated for use from a low of -65°F to a peak of +230°F, they will provide long life in the most demanding applications.



【 Push-Pull Standard Specifications 】

Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable

Efficiency Factor
• Input Force = (Output Load x Total Degrees of Bend x Efficiency Factor) + Output Load
For Bristow & Utility Efficiency
• Factor = .002
For Low Friction EXT & Low Friction
• EXT Efficiency Factor = .001
Note: Efficiency will be slightly reduced in applications when output load is substantially less than

          rated loads.



【 Push- Pull Standard Order Code 】

Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable



【 Conduits & Inner-Members With Different Loads 】

Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable



【 Push-Pull Cable Parameter Table 】

Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable

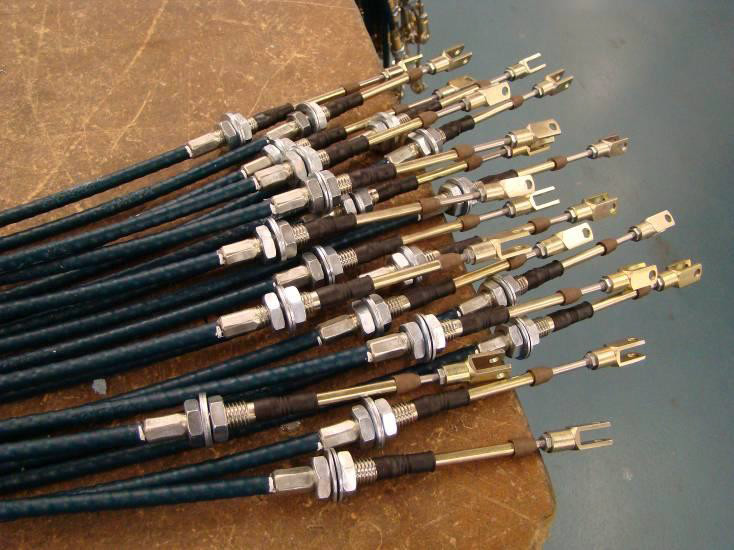

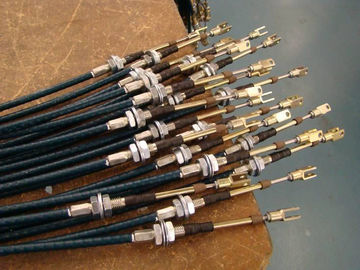

【 Real Pictures 】

Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable



Durable Flex Control Cable Assembly , Push Pull Automotive Control Cable
