Customized Gear Shift Control Cable Head / Locking Throttle Control Cable Heads

China Customized Gear Shift Control Cable Head / Locking Throttle Control Cable Heads supplier
Customized Gear Shift Control Cable Head / Locking Throttle Control Cable Heads supplier Customized Gear Shift Control Cable Head / Locking Throttle Control Cable Heads supplier

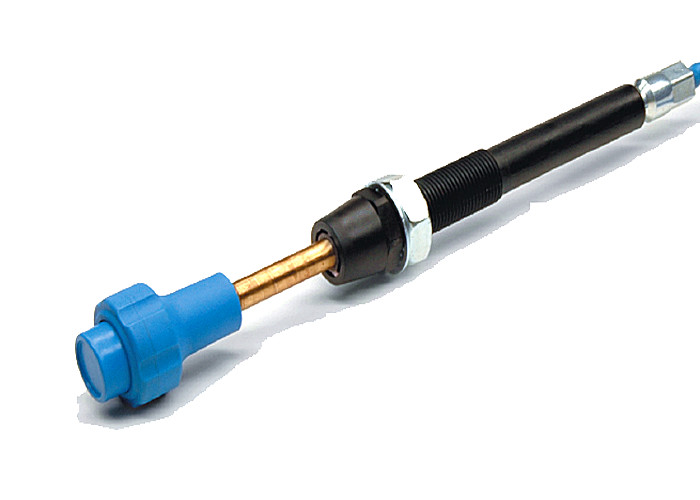

Large Image :  Customized Gear Shift Control Cable Head / Locking Throttle Control Cable Heads

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Contact Now
Detailed Product Description
Name: Universal Locking Throttle Cable Lost Motion: .030" + .0004 Per Degree Of Bend With ± 5.0lb Of Force
Normal Load: 120lb Tension, 25lb Compression Minimum Bend Radius: 3.00”
Operating Temperature: From -65°F — +165°F At Input End/+230°F At Output End Material: Stainless Steel Or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit And Innermember / Plastic Seal / Plastic Knob
Stroke: 3.00”



Friction Lock Control — Throttle 565 - 555 Series Stainless Steel or Plated Carbon Steel Push And Pull Control Head



【 Product Description 】

We are a designer and manufacturer of an extensive range of aircraft cables. The throttle, mixture, and prop/pitch micro adjust controls are in full compliance with FAA regulations. For adjusting course travel, the knob needs to be pushed or pulled by depressing the center button.
Counter-clockwise rotation of the knob leads to retraction of the output in finite mode, while clockwise rotation leads to its extension. For 1" of linear travel, four and one-half turns are needed. The micro adjust setting is not affected by normal vibration.
In terms of accessories, an optional friction lock is available. This is needed for applications getting impacted by extreme vibration. Also available is a control head only for friction lock.



【 Applications 】
• General aviation aircraft
• Throttle control
• Mixture control
• Prop/pitch control

【 Features 】
• Glass filled nylon control head
• Travel: 3.00" maximum
• Bend radius:3.00" minimum & 7.00" minimum
• Operating temp:-65°F — 165°F (input) 230°F (output)



【 Friction Lock Control - Throttle 565-555 】

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Lost motion: .030 + .0004 per
degree of bend with ± 5.0lb of force
Normal load: 120lb tension,
25lb compression
Glass filled nylon control head.

Customized Gear Shift Control Cable Head / Locking Throttle Control Cable Heads





【 Micro Adjust Control Heads 】

Customized Gear Shift Control Cable Head / Locking Throttle Control Cable Heads

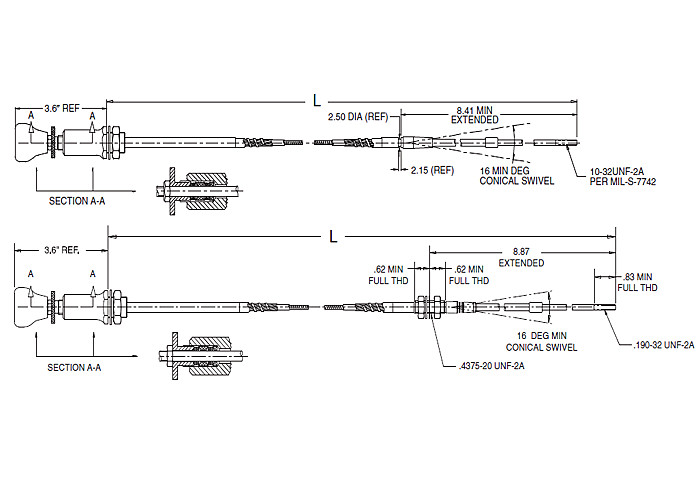

All line art dimensions are represented in inches
