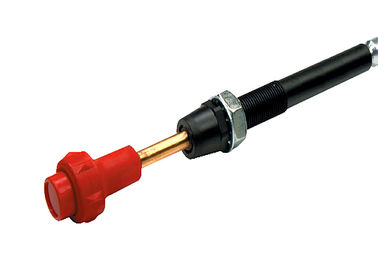

Universal Throttle Control Cable Assembly / Control Cable Head Solid Wire Output

Universal Throttle Control Cable Assembly / Control Cable Head Solid Wire Output
Universal Throttle Control Cable Assembly / Control Cable Head Solid Wire Output Universal Throttle Control Cable Assembly / Control Cable Head Solid Wire Output

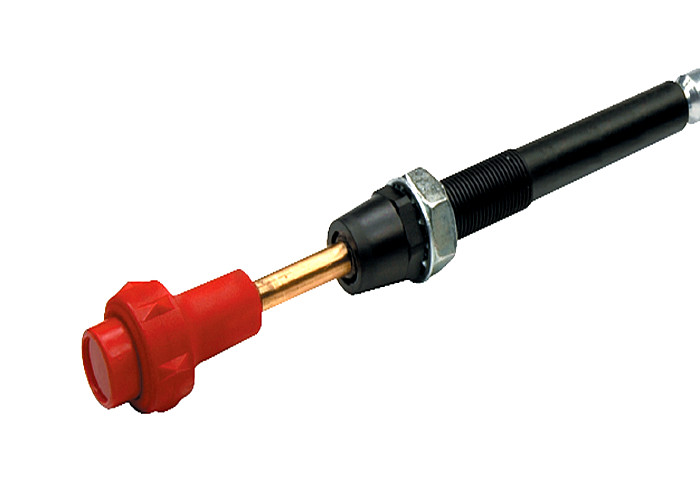

Large Image :  Universal Throttle Control Cable Assembly / Control Cable Head Solid Wire Output

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Detailed Product Description
Name: Universal Control Cables Minimum Bend Radius: 7.00"
Stroke: 3.00” HS Code: 87084050/87084020
Operating Temperature: From -65°F — +165°F At Input End/+230°F At Output End Normal Load: Unspecified (determined By Installation Configuration)
High Light:

control cable parts

,

push pull cable assemblies



Solid Wire Output — Throttle 565 - 558 Series Universal Control Cable With Adjustable Control Heads



【 Product Description 】

We can design and manufacture a wide range of aircraft cables. Our mixture, prop/pitch, and throttle micro adjust controls are compliant with FAA requirements. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. Rotating the knob counter-clockwise retracts the output in the finite mode, and clockwise extends.

Four and one-half turns results in 1[1] of linear travel. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications influenced by excessive vibration. A friction lock (only) control head is also available.Various output configurations are available to suit specific applications. The ordering code and technical descriptions show these choices.



【 Material 】
• Stainless Steel or Plated Carbon Steel
• Plastic Coated Carbon Steel Conduit
 and  Innermember
• Plastic Seal
• Plastic Knob

【Suggested End Fittings】
• Full Range

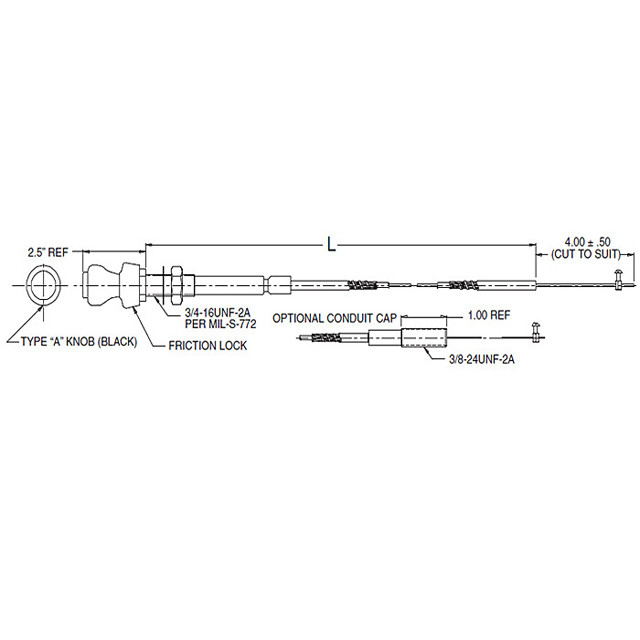

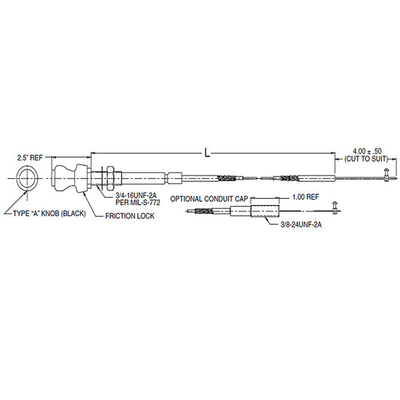

【 Solid Wire Output — Throttle 565-558 】

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 7.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.
