Micro Adjust Hand Throttle Control Cable Assembly Wire Rope Output 565 - 557 Series

China Micro Adjust Hand Throttle Control Cable Assembly Wire Rope Output 565 - 557 Series supplier
Micro Adjust Hand Throttle Control Cable Assembly Wire Rope Output 565 - 557 Series supplier Micro Adjust Hand Throttle Control Cable Assembly Wire Rope Output 565 - 557 Series supplier

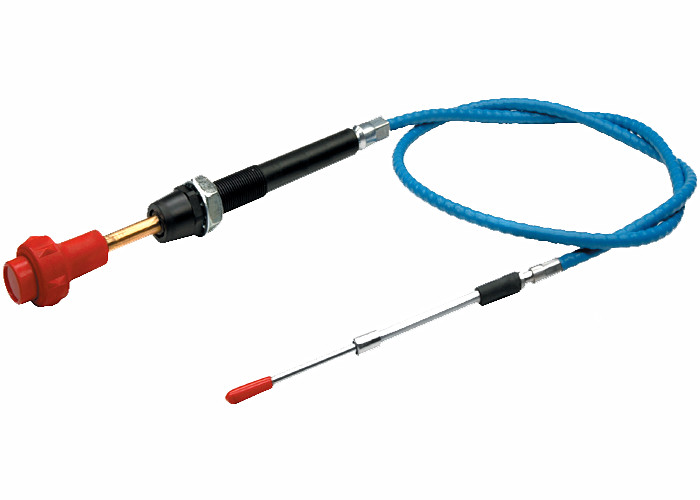

Large Image :  Micro Adjust Hand Throttle Control Cable Assembly Wire Rope Output 565 - 557 Series

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Contact Now
Detailed Product Description
Name: Wire Rope Output — Throttle 565 - 557 Series Micro Ajdust Hand Throttle Controller Control Head Stroke: 3.00”
Normal Load: Unspecified (determined By Installation Configuration) Minimum Bend Radiu: 3.00”
Operating Temperature: From -65°F — +165°F At Input End/+230°F At Output End Material: Stainless Steel Or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit And Innermember / Plastic Seal / Plastic Knob



Wire Rope Output — Throttle 565 - 557 Series Micro Ajdust Hand Throttle Controller Control Head



【 Product Description 】

We are a designer and manufacturer of an extensive range of aircraft cables. The throttle, mixture, and prop/pitch micro adjust controls are in full compliance with FAA regulations. For adjusting course travel, the knob needs to be pushed or pulled by depressing the center button.
Counter-clockwise rotation of the knob leads to retraction of the output in finite mode, while clockwise rotation leads to its extension. For 1" of linear travel, four and one-half turns are needed. The micro adjust setting is not affected by normal vibration.
In terms of accessories, an optional friction lock is available. This is needed for applications getting impacted by extreme vibration. Also available is a control head only for friction lock.



【 Material 】
• Stainless Steel or Plated Carbon Steel
• Plastic Coated Carbon Steel Conduit
 and Innermember
• Plastic Seal
• Plastic Knob

【Suggested End Fittings】
• Full Range

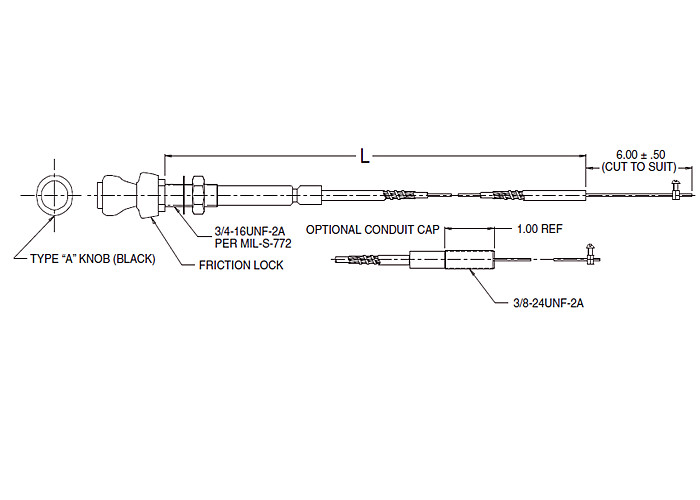

【 Wire Rope Output - Throttle 565-557 】

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.
