Heavy Duty Transmission Gear Shift Cable 1500 Series Cable With Optional Strap Clevis

Heavy Duty Transmission Gear Shift Cable 1500 Series Cable With Optional Strap Clevis

  • High Light

    control cable parts

    ,

    push pull cable parts

  • Name
    Universal Control Cables
  • Ultimate Load
    1500lb
  • Minimum Bend Radius
    5”
  • Installed Bend Radius
    Down To 5"
  • Type
    Transmission Control
  • Applications
    Park Brakes
  • Material
    Carbon Steel And Plastic
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7 - 40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece / Pieces per Month

Heavy Duty Transmission Gear Shift Cable 1500 Series Cable With Optional Strap Clevis

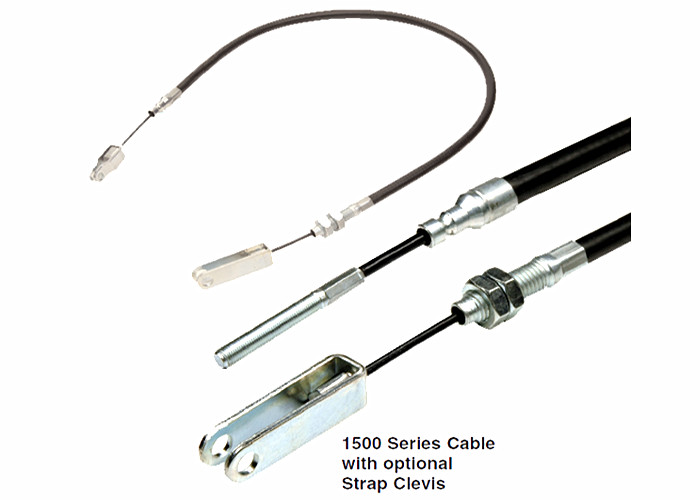

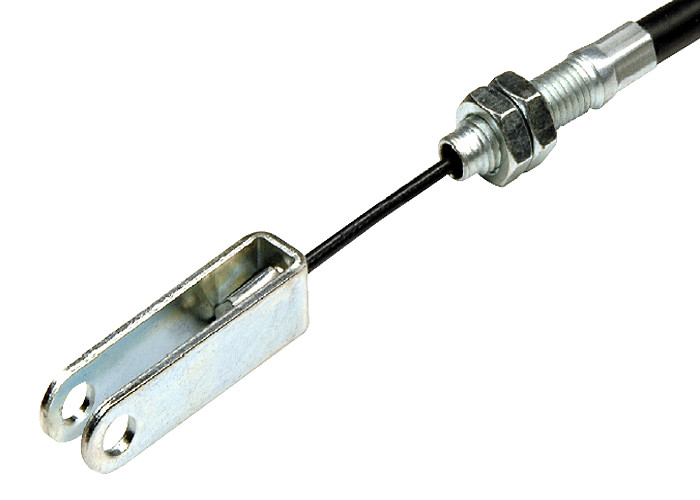

Heavy Duty Transmission Shift Cable Brake Control Cable Assembly 1500 Series Cable With Optional Strap Clevis



【 Product Description 】

1500 Pull-Only Brake, Industrial Control, Cable Assembly.
A flexible control designed to transmit pull motion between two mechanical devices without the use of rods, bellcranks, or other rigid mechanical linkage. Pull controls are specifically designed for applications which require a high load capability and low deflection. The cable often used for operating a vehicle parking brake is a typical example. Simple to install and easy to maintain, our versatile pull controls are found on many types of mechanical equipment.



【 Applications 】
• Park brakes
• Pull-pull cable systems


【 Material 】
• Carbon Steel and Plastic Steel


【 Suggested End Fittings
• All 1500lb Brake Cable Fittings
• Rod Ends
• Clevises

【 Features 】
• High load capacity
  1500 allows up to
  1500lb loads
• Low deflection
   3000 allows up to
   3000lb loads
• Installed bend radius
   down to 5"


【 Pull-Only Brake 1500lb Series 】

Ultimate Load: 1500lb Minimum Bend Radius: 5”
  Heavy Duty Transmission Gear Shift Cable 1500 Series Cable With Optional Strap Clevis 0
Grooved End Fittings
Heavy Duty Transmission Gear Shift Cable 1500 Series Cable With Optional Strap Clevis 1


Threaded End Fittings

48°Clip-Lock End Fitting Clip-Lock End Fitting
 Heavy Duty Transmission Gear Shift Cable 1500 Series Cable With Optional Strap Clevis 2

Ball End Eye End Cable Stop
Heavy Duty Transmission Gear Shift Cable 1500 Series Cable With Optional Strap Clevis 3


【 Pull-Only Brake Order Code 】

Industrial Pull-Only Brake
Heavy Duty Transmission Gear Shift Cable 1500 Series Cable With Optional Strap Clevis 4

To specify a pull-only brake, the following information must be given in the order listed:

1. Left innermember end fitting part
    number.
2. Left conduit end fitting part number.
3. Length “A” between conduit fitting

    reference points in inches.
4. Right conduit end fitting part number.
5. Right innermember end fitting part

     number.



6. Length “L” of innermember assembly
     between fitting reference points in inches.
7. Travel of the innermember in the conduit

      in inches.(Note: dimensions “L” must be
      sufficiently greater than dimension “A” to
      allow desired travel).
*Removable items should be listed separately.



【Ordering Codes】

Left Innermember End Fitting Part Number —— CS551
(Clevis End Fitting with Cable Stop)
Left Conduit End Fitting Part Number —— 072
(Grooved Conduit End Fitting)
Length of Conduit Assembly —— 54
(54") “A” Dimension
Right Conduit End Fitting Part Number —— 070
(Threaded Conduit End Fitting)
Right Innermember End Fitting Part Number —— TE505
(Threaded Conduit End Fitting)
Length of Innermember Assembly —— 64.5
(64.5") “L” Dimension
Travel (inches) —— 6
(6")
