Non Locking Vent Control Cable Assembly High Performance Stainless Steel Material

Non Locking Vent Control Cable Assembly High Performance Stainless Steel Material

  • High Light

    push pull cable assemblies

    ,

    push pull cable parts

  • Name
    High Performance Non Locking Vent Control Control Head Control Cable Assembly
  • Applications
    Heater Valve Control / Vent Control
  • Travel
    1.50” Maximum
  • Material
    Plated Carbon Steel Corrosion-Proof Control Heads
  • Efficiency
    Efficiency: 4 Inch / Lb Maximum To Push-pull 5lb
  • Temp Range
    -25°F - 160°F
  • Rotation
    270°
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    1 piece
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7 - 40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece / Pieces per Month

Non Locking Vent Control Cable Assembly High Performance Stainless Steel Material



High Performance Non Locking Vent Control Control Head Control Cable Assembly



【 Product Description 】

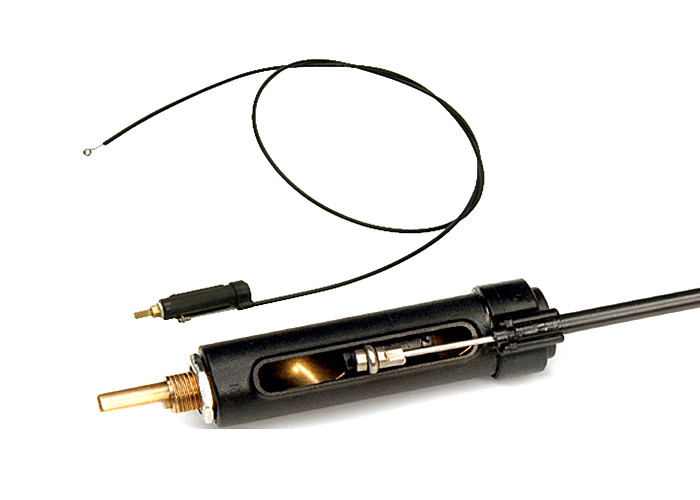

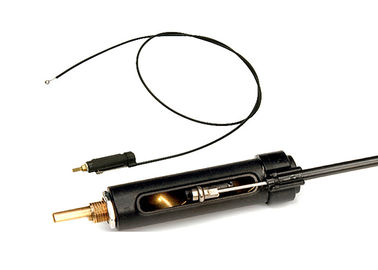

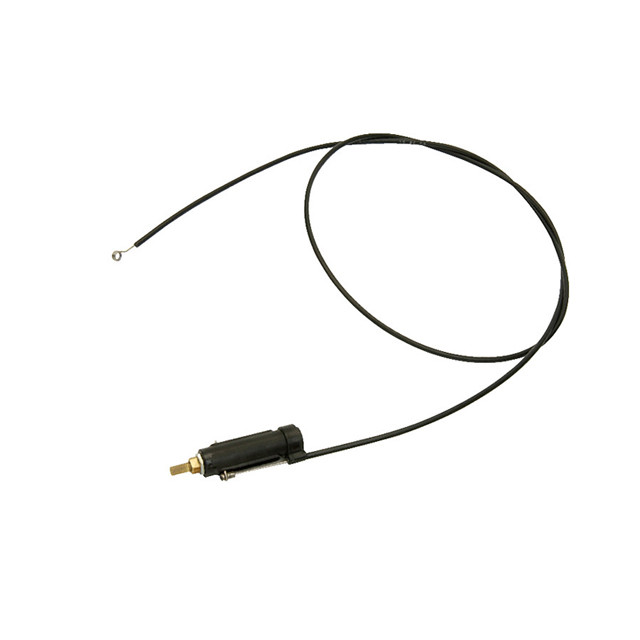

The 165-910 rotary control head is a panel or bracket mounted unit. Brass, stainless steel, and high performance plastic components are used in the design. It is a cost effective solution to convert a light manual rotary motion into a push-pull motion, especially when space is limited. A 270° input rotation provides 1-1/2" of travel and can be specified with either clockwise or counter-clockwise rotation to extend. The control head has a 7/16" thread with two flats for mounting. A 1/4" diameter input shaft with flat will accommodate various customer supplied or directed knobs. A flexible conduit with a .054-inch diameter stainless steel inner wire is attached to the control head. A plain shouldered conduit cap with straight wire or loop ends is a common output connection. Customer specified configurations can be provided as well.



【 Applications 】

• Heater valve control

• A/C vent control



【 Material 】

• Stainless Steel

• Inner Wire Brass

• High Performance Plastic



【 Suggested  End Fittings

• Knobs

【 Features 】

• Custom engineered assembly

• Travel: 1.50” maximum

• Efficiency: 4 inch / lb maximum to

   push-pull 5lb

• -25°F — 160°F temp. range

• 270° rotation

• Reverse rotation available

• Dust proof cover available



【 Vent Control 】

Non Locking Vent Control Cable Assembly High Performance Stainless Steel Material 0



Non Locking Vent Control Cable Assembly High Performance Stainless Steel Material 1



All line art dimensions are represented in inches
