Electronic Machinery Mechanical Control Cable Head , Twist Lock Throttle Cable Head

Electronic Machinery Mechanical Control Cable Head , Twist Lock Throttle Cable Head
Electronic Machinery Mechanical Control Cable Head , Twist Lock Throttle Cable Head Electronic Machinery Mechanical Control Cable Head , Twist Lock Throttle Cable Head

Large Image :  Electronic Machinery Mechanical Control Cable Head , Twist Lock Throttle Cable Head

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Detailed Product Description
Name: Control Cable Assembly Applications: Engine Shut Down
Load: 100lb Maximum Travel: 3.00" Maximum
Material: Plated Carbon Steel Corrosion-Proof Control Heads Package: Wood Case /carton/ Bubble Film
High Light:

control cable parts

,

push pull cable assemblies



Electronic Machinery Control Cable Assembly Twist Lock Push Pull Control Cable Head



【 Product Description 】

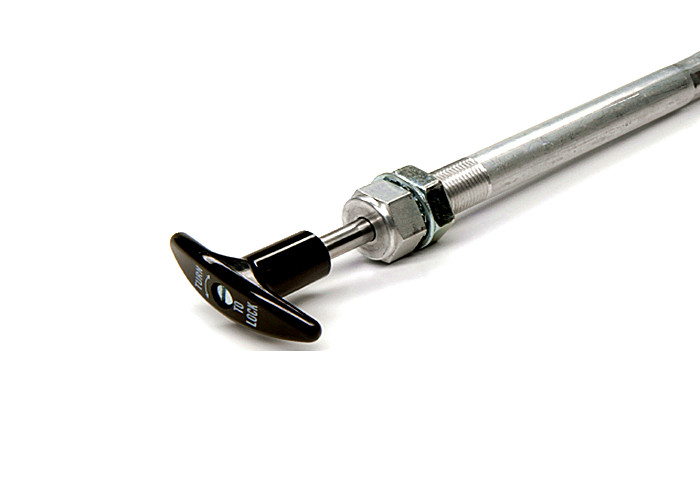

These twist lock control heads are a robust and simple design — only one moving part. The T-handle is free to travel the full length of the control until locked. Rotating the T-handle 1/8 turn in either direction along the travel will secure loads up to 100lb, and yet unlocks with ease. They are cost effective solutions to mechanically connecting and locking a manual input source to a remote output, especially when space is limited or rod linkage and bell cranks are not suitable choices. The ordering code and technical description shows the numerous choices available to meet customer requirements.



【 Applications 】
• Engine shut down
• Engine choke
• Latch operation
• Valve operation


【 Material 】
• Plated Carbon Steel Corrosion-Proof

   Control Heads

【 Features 】
• Load: 100lb maximum
• Travel: 3.00" maximum
• Threaded mount


【 Suggested End Fittings
• See Hardware/End Fittings or Call

   Factory for More Information



【 Twist Lock 】

Electronic Machinery Mechanical Control Cable Head , Twist Lock Throttle Cable Head 0

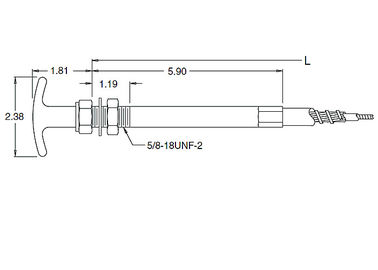

All line art dimensions are represented in inches



Electronic Machinery Mechanical Control Cable Head , Twist Lock Throttle Cable Head 1



【 Ordering Codes 】

Electronic Machinery Mechanical Control Cable Head , Twist Lock Throttle Cable Head 2
