Corrosion Proof Control Cable Assembly Micro Adjust Series Control Heads

China Corrosion Proof Control Cable Assembly Micro Adjust Series  Control Heads supplier
Corrosion Proof Control Cable Assembly Micro Adjust Series  Control Heads supplier Corrosion Proof Control Cable Assembly Micro Adjust Series  Control Heads supplier

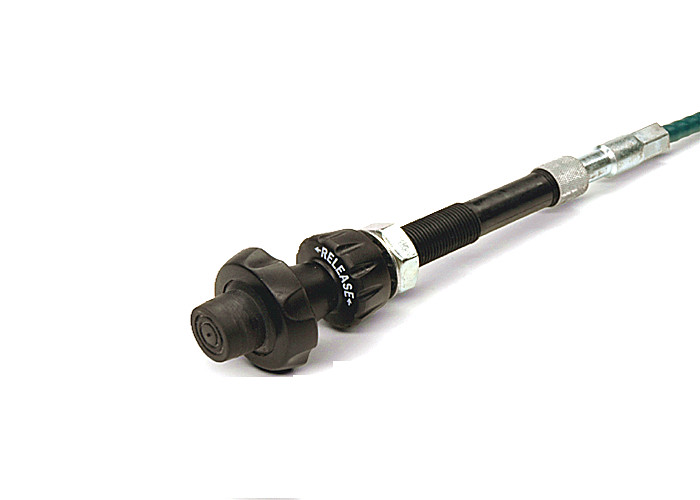

Large Image :  Corrosion Proof Control Cable Assembly Micro Adjust Series Control Heads

Product Details:

Place of Origin: China
Brand Name: CABLECRAFT / PHIDIX
Certification: ISO9001
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Contact Now
Detailed Product Description
Name: Throttle Control Cable Applications: Throttle Control
Load: 20lb Maximum Travel: 3.00" Maximum
Material: Plated Carbon Steel Corrosion - Proof Control Heads HS Code: 87084050/87084020
Package: Wood Case /carton/ Bubble Film



New Type Micro Adjust Series Control Cable Assembly , Micro Adjust Control Head



【 Product Description 】

Micro Adjust control heads are ideal for remote operation of a throttle, regulating valve, or other applications needing precise adjustment capabilities. Depressing the center button allows pushing or pulling the knob to make course travel adjustments. A flexible dust seal protects the internal release mechanism. Rotating the knob clockwise extends the output in the finite mode, and counter-clockwise retracts. Four and one-half turns results in 1" of linear travel. The maximum recommended load is 20lbs. Normal vibration does not affect the micro adjust setting. An optional friction lock accessory is available for applications where vibration is excessive. A disconnect feature and various output end configurations are available to suit a particular application. The ordering code and technical description show these choices.



【 Applications 】
• Throttle control
• Regulating valve


【 Features 】
• Load: 20lb maximum
• Travel: 3.00" maximum
• Threaded mount
• Friction lock
• Disconnect

【 Material 】
• Plated Carbon Steel Corrosion-Proof Control

   Heads


【 Suggested End Fittings
• See Hardware/End
   Fittings or Call Factory for More Information

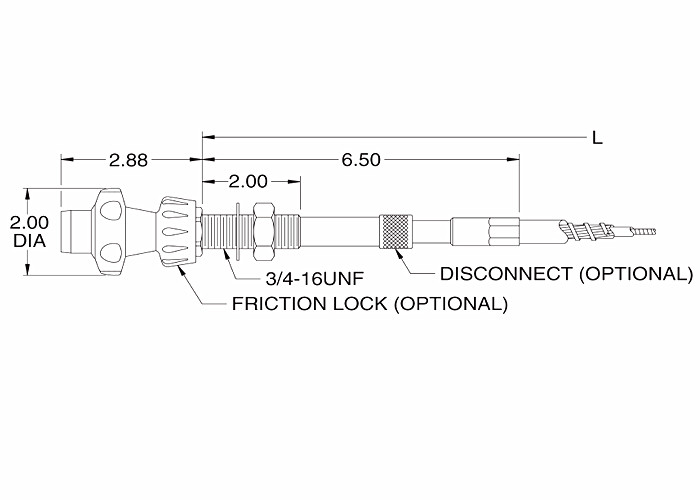

【 Micro Adjust 】

Corrosion Proof Control Cable Assembly Micro Adjust Series  Control Heads



【 Cablecraft® Ordering Codes 】

Corrosion Proof Control Cable Assembly Micro Adjust Series  Control Heads
