Name: Model TCF3 Series Electronic Accelerator Pedal For Trucks / Buses ISO 9001 Approved
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: TCF3
Price: 500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: Unique Non-contact Sensor / Simple And Robust / Small Angular Movement To Give Full Range Of Output

Name: Electric Foot Pedal

Applications: Trucks / Buses / Construction Equipment / Farm Equipment / Material Handling Equipment

Input Voltages: 5v+/-10%, 12/24v, 24/48v, 72/80v

Linearity: <1%

Signal Correlation: <2%

EM Emissions: CISPR25

Highlight:

foot accelerator pedal

floor mounted accelerator pedal

Basic Infomation

Place of Origin: China

Brand Name: PHIDIX

Certification: IATF16949

Model Number: TCF3

Payment & Shipping Terms

Packaging Details: carton or wood case

Delivery Time: 7-40 work days

Payment Terms: L/C, D/A, D/P, T/T

Supply Ability: 888 Piece/Pieces per Month

Gallery

Model TCF3 Series Electronic Accelerator Pedal For Trucks / Buses ISO 9001 Approved

Product Description

Model TCF3 Series Electronic Floor Mounted Industrial Pedal Foot Control

【 Product Description 】

The electronic foot pedals are designed primarily for the control of modern diesel and gasoline powered vehicles having sophisticated electronic managements systems. The versatility of their design also makes them well suited for controlling electric vehicles and modern hydraulic systems.
The electronic accelerator pedals are based around a unique non-contact angular displacement sensor. This innovative sensor design has resulted in development of simple and reliable pedal assemblies that can be easily incorporated into virtually any type of vehicle. The sensor is available with a wide range of different signal outputs and is compatible with most electronic engine management systems in use today.

【 Applications 】
• Trucks
• Buses
• Construction Equipment
• Farm Equipment
• Material Handling
Equipment

【 Features 】
• Unique non-contact sensor
• Simple and robust
• Small angular movement to give full range of output
• Compatible with all popular electronic engine management
systems
• Designed to meet specific customer requirements

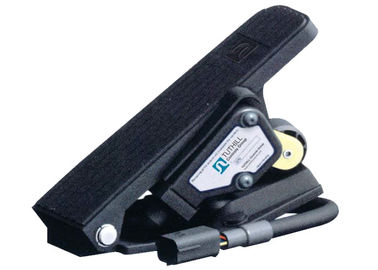

【 Model TCF3 】
Model TCF3 Series Electronic Accelerator Pedal For Trucks / Buses ISO 9001 Approved 0

【 Durability & Environmental Performance 】
Normal Operating Temperature	-40° C to +85° C
Life Cycles	>10,000,000 Full Cycles >80,000,000 Dither Cycles
Vibration	20 Hours 20 to 200 Hz in each axis: 1G axial, 5G horizontal, 8G vertical
High Temperature	+120° C for 96 Hours
Low Temperature	-40° C for 96 Hours
Salt Spray	96 Hours (5%NaCl)
Humidity	200 Hours @ 95% RH
Combined Cycle	200 Hours
Water Ingress	IP67
Pressure Wash	10 mins 125° C @ 150 BAR Pressure
EMI	ISO11452-2,5@150V/M 95/54/EC
EM Emissions	CISPR25

【 Electrical Characteristics 】
Input Voltages	5v+/-10%, 12/24v, 24/48v, 72/80v
Linearity	<1%
Signal Correlation	<2%
Current Requirements	From 10mA
Signal Outputs	As required, contact factory

All dimensions are in millimeters
