TCF1 Series Truck Accelerator Pedal , Electronic Floor Mounted Foot Throttle Pedal

China TCF1 Series Truck Accelerator Pedal , Electronic Floor Mounted Foot Throttle Pedal supplier
TCF1 Series Truck Accelerator Pedal , Electronic Floor Mounted Foot Throttle Pedal supplier TCF1 Series Truck Accelerator Pedal , Electronic Floor Mounted Foot Throttle Pedal supplier

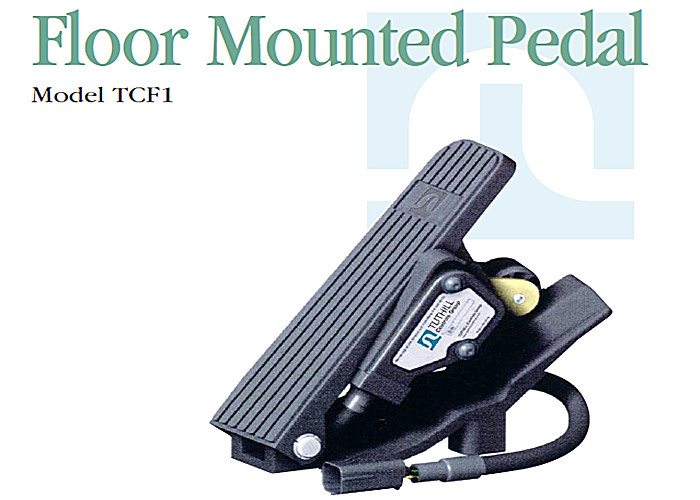

Large Image :  TCF1 Series Truck Accelerator Pedal , Electronic Floor Mounted Foot Throttle Pedal

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: TCF1

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece/Pieces per Month
Contact Now
Detailed Product Description
Features: Unique Non-contact Sensor / Simple And Robust / Small Angular Movement To Give Full Range Of Output Name: Electric Throttle Pedal
Applications: Trucks / Buses / Construction Equipment / Farm Equipment / Material Handling Equipment Normal Operating Temperature: -40° C To +85° C
Life Cycles: >10,000,000 Full Cycles >80,000,000 Dither Cycles Vibration: 20 Hours 20 To 200 Hz In Each Axis: 1G Axial, 5G Horizontal, 8G Vertical
High Temperature: +120° C For 96 Hours Low Temperature: -40° C For 96 Hours
Input Voltages: 5v+/-10%, 12/24v, 24/48v, 72/80v


Model TCF1 Series Electronic Floor Mounted Industrial Pedal Foot Control

【 Product Description 】
The electronic foot pedals are designed primarily for the control of modern diesel and gasoline powered vehicles having sophisticated electronic managements systems. The versatility of their design also makes them well suited for controlling electric vehicles and modern hydraulic systems.
The electronic accelerator pedals are based around a unique non-contact angular displacement sensor. This innovative sensor design has resulted in development of simple and reliable pedal assemblies that can be easily incorporated into virtually any type of vehicle. The sensor is available with a wide range of different signal outputs and is compatible with most electronic engine management systems in use today.


【 Applications 】
• Trucks
• Buses
• Construction Equipment
• Farm Equipment
• Material Handling
   Equipment

【 Features 】
• Unique non-contact sensor
• Simple and robust
• Small angular movement to give full range of output
• Compatible with all popular electronic engine management
   systems
• Designed to meet specific customer requirements

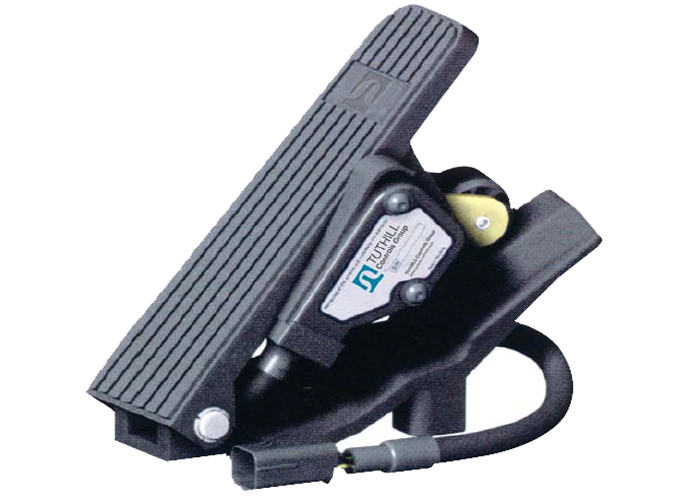

【 Model TCF1 】

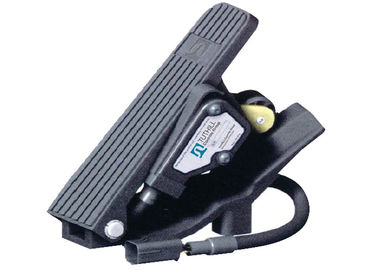

TCF1 Series Truck Accelerator Pedal , Electronic Floor Mounted Foot Throttle Pedal

【 Durability & Environmental Performance 】

Normal Operating Temperature -40° C to +85° C
Life Cycles >10,000,000 Full Cycles >80,000,000 Dither Cycles
Vibration 20 Hours 20 to 200 Hz in each axis: 1G axial, 5G horizontal, 8G vertical
High Temperature +120° C for 96 Hours
Low Temperature -40° C for 96 Hours
Salt Spray 96 Hours (5%NaCl)
Humidity 200 Hours @ 95% RH
Combined Cycle 200 Hours
Water Ingress IP67
Pressure Wash 10 mins 125° C @ 150 BAR Pressure
EMI ISO11452-2,5@150V/M 95/54/EC
EM Emissions CISPR25


【 Electrical Characteristics 】

Input Voltages 5v+/-10%, 12/24v, 24/48v, 72/80v
Linearity <1%
Signal Correlation <2%
Current Requirements From 10mA
Signal Outputs As required, contact factory


All dimensions are in millimeters
