Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
We received your samples and are very happy with the quality.

—— Grace Arndt

I received the cables. I am very pleased with the quality. Very good product.

—— Hans Boehner

I'm Online Chat Now

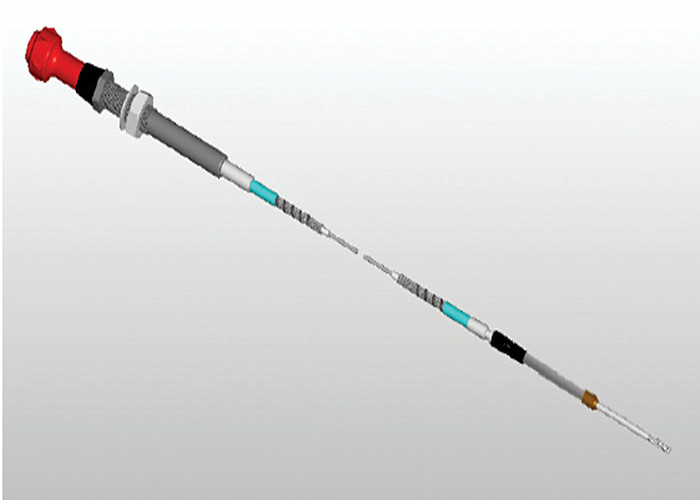

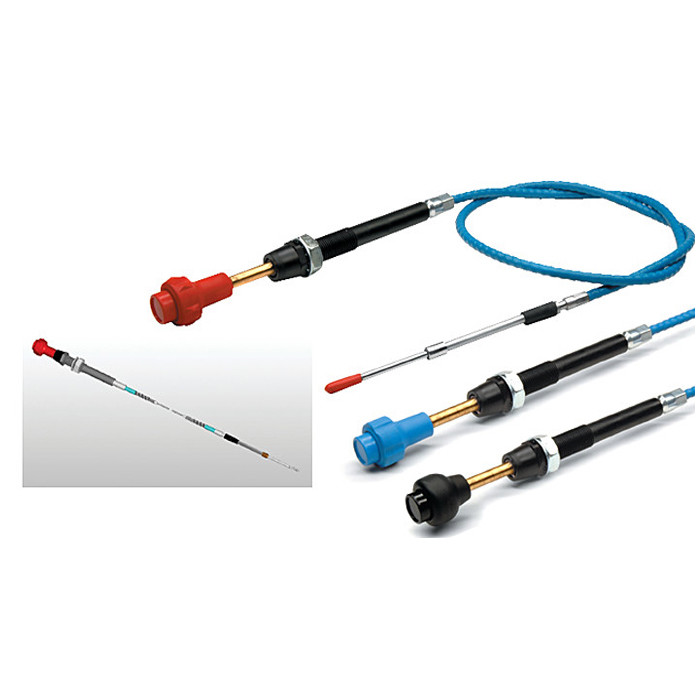

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head
Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head

Large Image :  Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head

Product Details:

Place of Origin: China
Brand Name: PHIDIX
Certification: IATF16949
Model Number: Customized

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7 - 40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece / Pieces per Month
Detailed Product Description
Name: Automotive Control Cable Head Applications: General Aviation Aircraft
Travel: 3.00” Maximum Bend Radius: 3.00” Minimum & 7.00” Minimum
Operating Temp: -65°F — 165°F (input) 230°F (output) Material: Stainless Steel Or Plated Carbon Steel / Plastic Coated Carbon Steel Conduit And Innermember / Plastic Seal / Plastic Knob
High Light:

push pull control cable

,

gear shift control cable



Micro Adjust Performance Push - Pull Control Head Has A Variety Of Flexible Trimming Handles



【 Product Description 】

We are a designer and manufacturer of an extensive range of aircraft cables. The throttle, mixture, and prop/pitch micro adjust controls are in full compliance with FAA regulations. For adjusting course travel, the knob needs to be pushed or pulled by depressing the center button.
Counter-clockwise rotation of the knob leads to retraction of the output in finite mode, while clockwise rotation leads to its extension. For 1" of linear travel, four and one-half turns are needed. The micro adjust setting is not affected by normal vibration.
In terms of accessories, an optional friction lock is available. This is needed for applications getting impacted by extreme vibration. Also available is a control head only for friction lock.



【 Applications 】
• General aviation aircraft
• Throttle control
• Mixture control
• Prop/pitch control



【 Material 】
• Stainless Steel or Plated Carbon Steel
• Plastic Coated Carbon Steel Conduit

   and  Innermember
• Plastic Seal
• Plastic Knob

【 Features 】
• Glass filled nylon control head
• Travel: 3.00" maximum
• Bend radius:3.00" minimum & 7.00" minimum
• Operating temp:-65°F — 165°F (input)
                                230°F (output)



【 Suggested End Fittings
• Full Range



【 Micro Adjust Control Heads 】

Standard Output - Throttle 565-550

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius:
3.00"

Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Lost motion: .030 + .0004 per
degree of bend with ± 5.0lb of force
Normal load: ±20lb
Glass filled nylon control head.

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head 0



Wire Rope Output - Throttle 565-557

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head 1



Solid Wire Output - Throttle 565-558

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 7.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head 2



Friction Lock Control - Throttle 565-555

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Lost motion: .030 + .0004 per
degree of bend with ± 5.0lb of force
Normal load: 120lb tension,
25lb compression
Glass filled nylon control head.

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head 3



Standard Output - Mixture 565-550

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Lost motion: .030 + .0004 per degree of bend with ± 5.0lb of force
Normal load: ± 20lb
Glass filled nylon control head.

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head 4



Wire Rope Output - Mixture 565-557

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 3.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head 5



Solid Wire Output - Mixture 565-558

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 7.00"
Operating temperature:
from -65°F — +165°F at
input end/+230°F at output end
Normal load: Unspecified (determined by installation configuration)
Glass filled nylon control head.

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head 6



Standard Output - Prop/Pitch 565-550

Notes: (Design Parameters)
Stroke: 3.00"
Minimum bend radius: 7.00"
Operating temperature:
from -65°F — +230°F
Normal load: ±20lb
Lost motion: .030 + .0004 per degree of bend with ± 5.0lb of force
Glass filled nylon control head.

Micro Adjust Performance Throttle Control Cable Head , Custom Push Pull Cables Head 7
