Detailed Product Description
Features: Corrosion-resistant / Weather-resistant Switch Name: Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment
Applications: Industrial Equipmentequipment Material: Steel And Plastic
Loads: 1000lb Travel: 2-7/16" Maximum
HS Code: 87084050/87084020 Package: Wood Case /carton/ Bubble Film
Type: Handle



Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

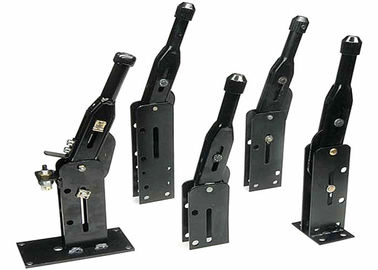

【 Product Description 】

Our park brake levers offer superior performance, quality and service life to both the designer and user. The lever has two distinct positions, over-center and off, which are approximately 90° apart. There is no ratcheting to limit travel or secondary unlocking required for operation. A heat-treated 4130 load link provides an excellent combination of qualities for durability and reliability. An integral adjusting knob allows for setting the initial cable tension, travel, and to compensate for system wear. Side or flange mounted configurations are available for increased adaptability. The input lever and side plates have anepoxy finish or electro-static paint, and all other components are coated for corrosion resistance. A tamper-resistant knob to inhibit unauthorized adjustment, and a weather-resistant switch at the off position, are both available as options. The levers are supplied with hardware necessary to attach the cable end fittings to the load link. Technical descriptions show the various choices available to meet specific customer needs.



Applications
• Mobile equipment
• Industrial equipment





Material
• Coated Carbon Steel
• Non-corrosive Bushings
• Plastic Knob



Features
• Loads: 1000lb
• Travel: 2-7/16 maximum
• Side and flange mounting
• Epoxy finish or electrostatic paint on lever

   and side plates
• Corrosion-resistant components
• Attachment hardware included
• Tamper-resistant knob (option)
• Weather-resistant switch (option)

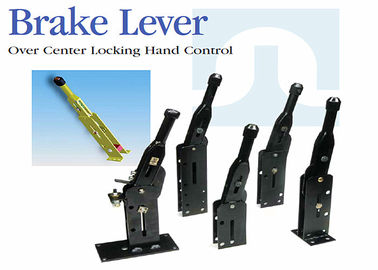

【 Brake Lever 】

Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

• Dimension A is with the lever in full “OFF” position. Use dimension A in calculating cable length.
• Dimension B minimum is with the lever in full “ON” position and adjusted for minimum (CCW)

   travel. Use dimension B minimum during installation and initial adjustment. Turn knob (CW) to

   add travel and increase brake pressure setting.
• Dimension B maximum is with the lever in full “ON” position and adjusted for maximum (CW)

   travel.


Side Mount 165-508-008

Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

2.5 inches (64mm) wide side plates; one cable, with three alternate sets of cable clamp holes. For cowl, instrument panel, seat riser or frame installation.



Kit B815 — supplied with the following hardware:
Clevis pin Cotter pin Washer
Mounting spacers (2) Cable clamp Clamp base
Clamp spacers (2)


Side Mount 165-508-009

Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

2.5 inches (64mm) wide side plates; one cable. For cowl, instrument panel, seat riser or frame installation. No cable support.



Kit B816 — supplied with the following hardware:
Clevis pin Cotter pin Washer
Mounting spacers (2)


Flange Mount 165-508-010

Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

2.5 inches (64mm) wide side plates; one cable. For bulkhead floor or island (doghouse) installation. The rigid frame maintains alignment of clevis pin guide slots for improved life of both the pin and side plates.



Kit B817 — supplied with the following hardware:
Clevis pin Cotter pin Washer
Cable clamp Clamp base 5/16-24 Bolts (2) nuts (2)


Side Mount 165-508-011

Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

1.5 inches (38mm) wide side plates; one cable. For cowl, instrument panel, seat riser or frame installation.



Kit B834 — supplied with the following hardware:
Clevis pin Cotter pin Washer
Mounting spacers (2) Cable clamp


Side Mount 165-508-013

Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

2.5 inches (64mm) wide side plates; two cables. For cowl, instrument panel, seat riser or frame installation. NOTE: When considering load requirements the load on the lever assembly will be the sum of the load in each cable.



Kit B835 — supplied with the following hardware:
Clevis pins (2) Cotter pins (2) Washers (2)
Mounting spacers (2) Cable clamps


Flange Mount Rigid 165-508-023

Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

1.5 inches (38mm) wide side plates; one cable.For cowl, instrument panel, seat riser or frame installation.



Kit B837 — supplied with the following hardware:
Clevis pin Cotter pin Washer
Mounting spacers (2) Cable clamp Clamp spacers (2)


Side Mount 165-508-028

Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

1.5 inches (38mm) wide side plates; one cable. For cowl, instrument panel, seat riser or frame installation.



Kit B837 — supplied with the following hardware:
Clevis pin Cotter pin Washer
Mounting spacers (2) Cable clamp Clamp spacers (2)


Flange Mount 165-508-078

Over Center Locking Hand Control Lever Corrosion Resistant For Industrial Equipment

2.5 inches (64mm) wide side plates; two cables. For bulkhead, floor or island (doghouse) installation. NOTE: When considering load requirements, the load on the lever assembly will be the sum of the load in each cable. Wing flange mounting.



Kit B835 — supplied with the following hardware:
Clevis pins (2) Cotter pins (2) Washers (2)
Mounting spacers (2) Cable clamps



All line art dimensions are represented in inches
