Heavy Duty Throttle Electronic Accelerator Pedal Foot Control Assemblies

China Heavy Duty Throttle Electronic Accelerator Pedal Foot Control Assemblies supplier
Heavy Duty Throttle Electronic Accelerator Pedal Foot Control Assemblies supplier Heavy Duty Throttle Electronic Accelerator Pedal Foot Control Assemblies supplier

Large Image :  Heavy Duty Throttle Electronic Accelerator Pedal Foot Control Assemblies

Product Details:

Place of Origin: China
Brand Name: CABLECRAFT/PHIDIX
Certification: ISO9001
Model Number: Heavy Duty Throttle Industrial Pedal

Payment & Shipping Terms:

Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiation
Packaging Details: carton or wood case
Delivery Time: 7-40 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 888 Piece/Pieces per Month
Contact Now
Detailed Product Description
Name: Foot Accelerator Pedal Material: Coated Sheet Metal
Applications: Medium-duty Trucks HS Code: 87084050/87084020
Package: Wood Case /carton/ Bubble Film Brand Name: TUTHILL



Electronic Accelerator Pedal Heavy Duty Throttle Industrial Pedal Foot Control Assemblies



【 Product Description 】

The 165-574-001 and -002 throttle pedals are intended for medium and heavy-duty trucks, construction and farm equipment, and buses. The -001 configuration is a foot throttle only design.
The -002 configuration adds hardware allowing for a manual remote hand operated throttle control. A torsion spring is incorporated for idle position return. Environmental contamination is minimized by a plastic boot installed between the pedal and mounting base. Idle pedal position and throttle travel is adjustable to meet user requirements. The entire lower portion of the assembly can be inserted through a cutout in the floor, and will rotate 360° and down 30° maximum from horizontal to optimize throttle cable routing. Multiple fastener holes are incorporated into the base to accommodate different mounting patterns.
The pedal surface is ribbed to reduce foot slippage and increase strength. Corrosion-resistant die cast components, plated steel hardware, and plastic bushings all provide years of smooth, trouble-free service.



Applications
• Medium-duty trucks
• Heavy-duty trucks
• Construction equipment
• Farm equipment
• Buses



Material
• Coated sheet metal
• Plastic bushings
• Plastic boot plated steel hardware



Suggested End Fittings
• Clevis and pin, or end fitting with right  angle bend



Features
• Die cast & steel components
• Multiple base bolt patterns
• Spring returned pedal
• Adjustable pedal angle
• Throttle cable exit is adjustable
• Travel: 2.00 maximum
• -25°F — 160°F temp range

   (-14°C — 90°C)
• Corrosion-resistant die cast components,

   plated steel hardware, and  plastic

   bushings



【 Heavy- Duty Throttle 】

Standard Pedal 165-574-001

For use with one Pull-Only accelerator cable.

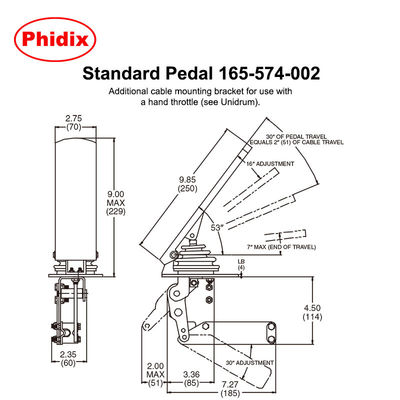

Standard Pedal 165-574-002

Additional cable mounting bracket for use with a hand throttle (see Unidrum).

Heavy Duty Throttle Electronic Accelerator Pedal Foot Control Assemblies Heavy Duty Throttle Electronic Accelerator Pedal Foot Control Assemblies
Heavy Duty Throttle Electronic Accelerator Pedal Foot Control Assemblies

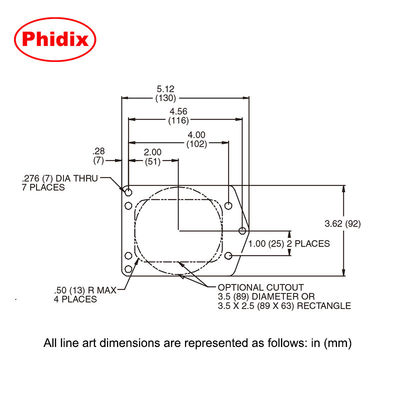

All line art dimensions are represented as follows: in (mm)



【 Fast and Economical Installation 】
A throttle cable simplifies the installation, providing a complete system to suit many applications.
The pedal tower mechanism is designed to be dropped through the floor and secured. Cable attachment can then be quickly and easily completed.
