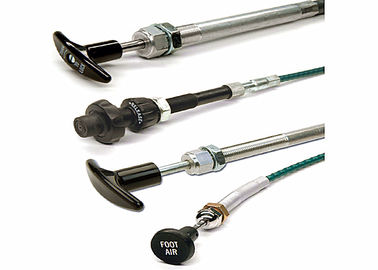

Custom Control Cables Clutch Cable For Trucks / Buses / Boat / Farm Tractor
This series is customized, special needs for different customers.

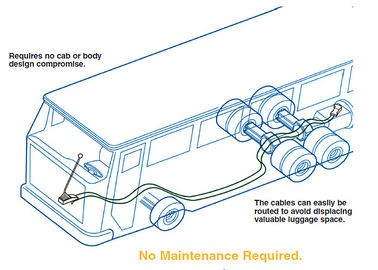

【 Applications 】
【 Part Number Code 】
Construction — Sample Part No. 173
173 – Utility with stainless end rods.
174 – Utility with stainless support tube and stainless armor innermember.
313 – Low-Friction EXT with all plastic wear surfaces and stainless steel end rods.
314 – Low-Friction EXT with all plastic wear surfaces, stainless steel end rods and stainless steel swivel support tubes.
Duty (Load carrying capacity)— M
Available in: V (Very light duty), L (Light duty), M (Medium duty), H (Heavy duty).
Determine by load or end rod diameter from table A below.
Conduit End Fittings — TG
TT (Threaded fittings both ends), GG (Grooved fittings both ends), TG (Threaded fitting one end and Grooved on the other). See table A and diagram B below for dimensions.
Length of Travel— 2
1 to 6 inches. Determine from table A and diagram C below.
Length Overall (Inches) — 90
【 Load Capacities And Length Of Travel 】
【 Conduit End Fittings 】
Threaded Conduit End Fitting for bulkhead mounting.
Grooved Conduit End Fitting for mounting with U-bolts or clamps.
【 Overall Length And Travel In Inches 】
FOR REPLACEMENT CABLES
A. Remove old cable.
B. Measure length as shown below.
C. Measure length of travel. 1” through 6”.
D. Determine size of thread “F.” Select basic part number from table above.
FOR NEW CABLES
A. Determine overall length.
B. Measure travel required. Add ¼” and then round upward to nearest whole inch.
C. Determine loads and select basic part number from table A.
【 Locally Assembled Control Head Cables 】
Utility & Low-Friction EXT
How to Order
*3 = Stainless steel end rod **4 = Stainless steel end rod, support tube and innermember armor
