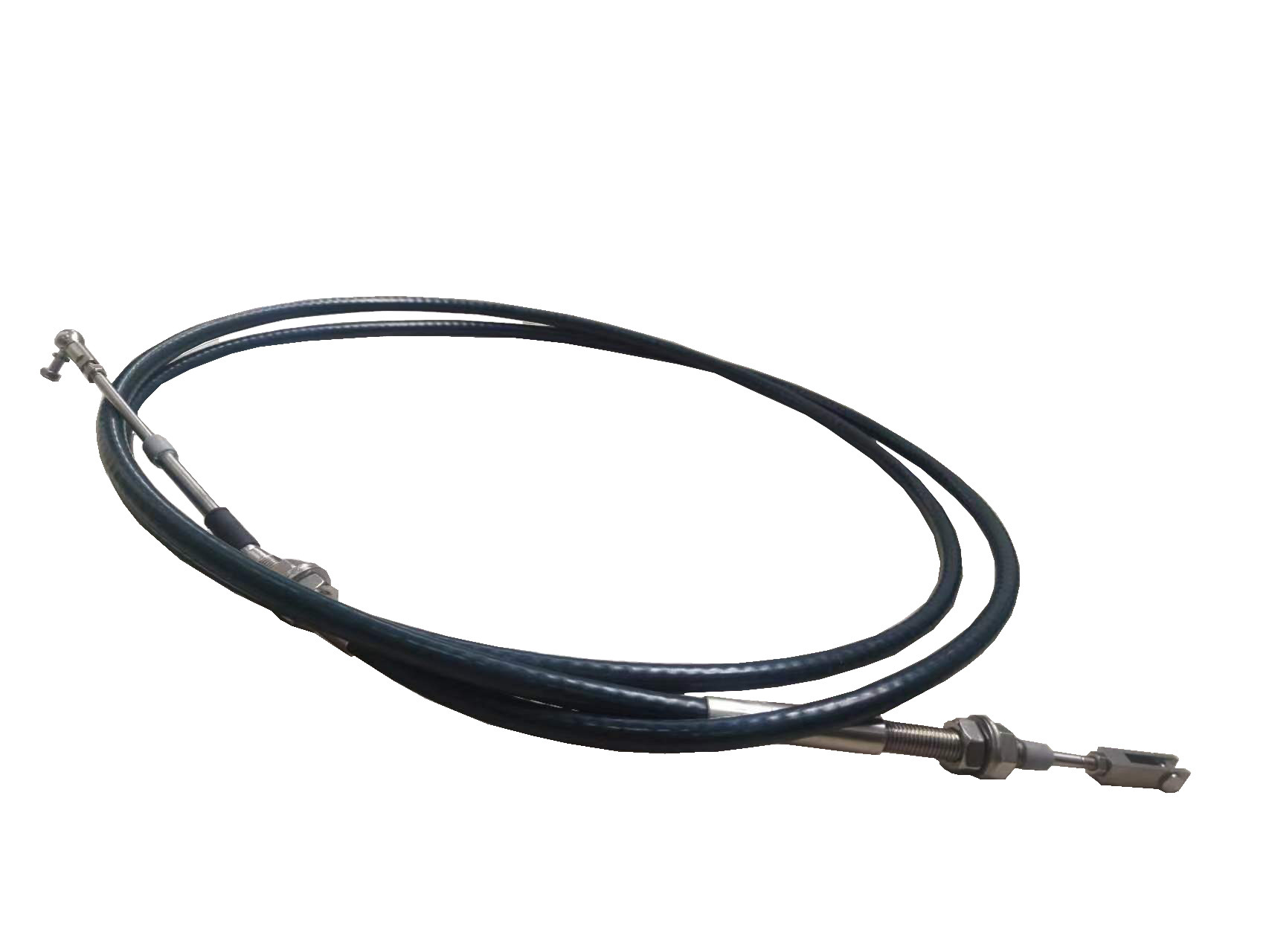

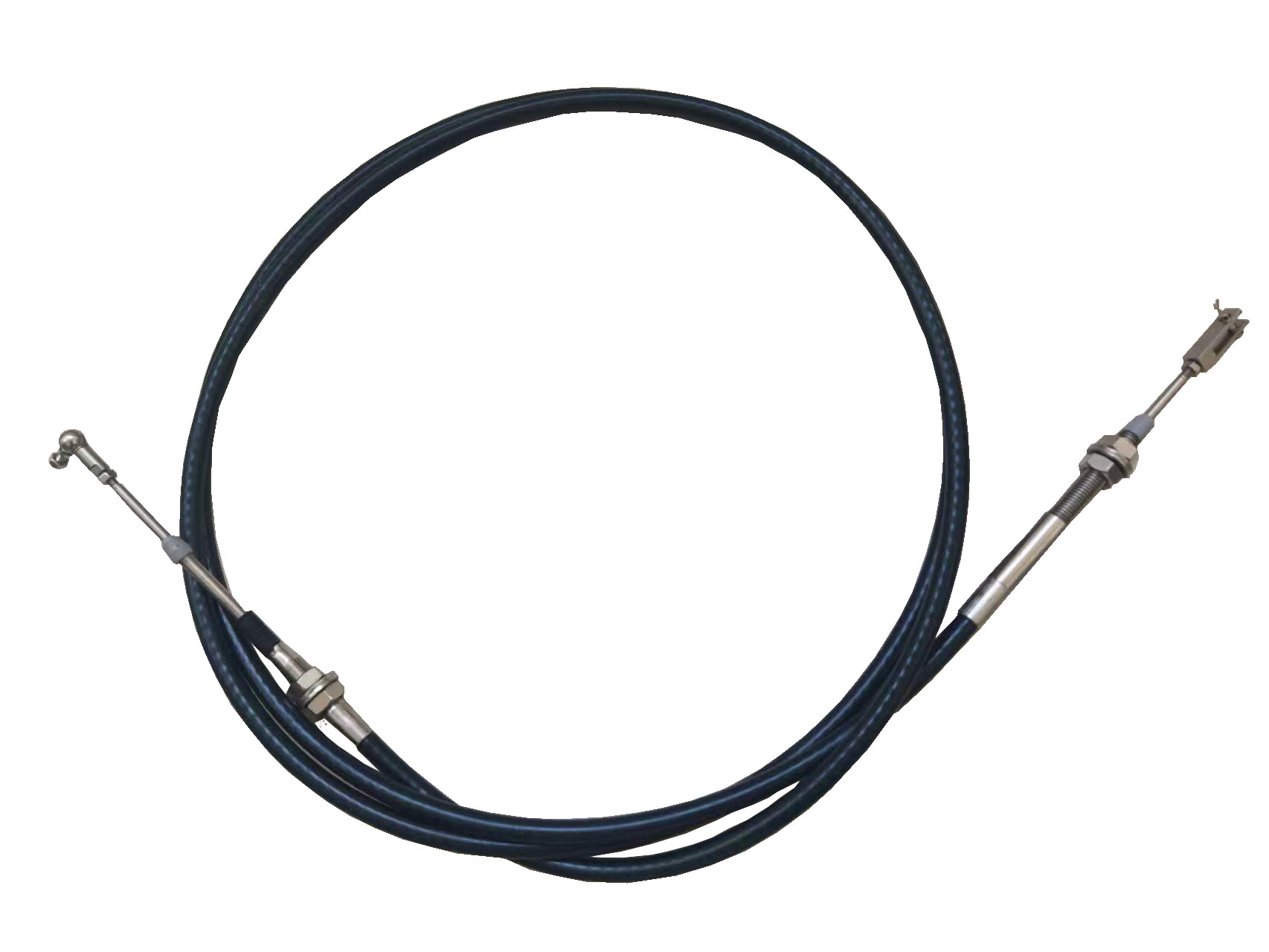

Control Cable Push-Pull Throttle Cable

Control Cable Push-Pull Throttle Cable

  • High Light

    Push Pull Throttle Cable Assemblies

    ,

    Push-Pull Throttle Cable

    ,

    Carbon Steel Push Pull Cable Assembly

  • Parts Material
    Stainless Steel Or Carbon Steel
  • Certificate
    IATF16949
  • Feature
    High Temperature Resistance, Low Loss , Long Service Life
  • Common Applications
    Truck, Bus, Wheel Loader,Road Roller And Etc.
  • Length
    Can Be Customized
  • Cable Color
    Black, Green Or Grey
  • Character
    Smooth,Tough And Durable
  • Place of Origin
    Shanghai
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    10 Piece/Pieces
  • Payment Terms
    L/C, D/A, D/P, T/T

Control Cable Push-Pull Throttle Cable



【 Product Description 】

Push-pull cables are remote controls to transfer push-and-pull movements. In many cases, they replace rigid and agile pole connections. The push-pull cables are high flexible, very smooth and maintenance-free. Furthermore, our push-pull cables are high transmission and three-dimensional applicable. Through the heat- and frost-resistant the cables can be used everywhere. Our push-pull cables are available in galvanized or stainless steel. Besides our low-cost standard products we also offer customized solutions. On request, we deliver the push-pull cables with different hand gears.



【 Features 】

• Constructed of high-quality materials for durability;

• Available in a variety of styles, including twist-to-lock and push-pull;

• Different lengths, diameters, and knob designs available.




【 Cable Considerations 】

There are many factors that affect cable operation and performance.Please consider the following when planning your cable applications.

Bend Radius: All cables have a minimum bend radius that should not be exceeded (see push-pull cable specifications). Any excessive bends or kinks will prevent the cable from operating properly.

Total Degrees of Bend: As the degrees of bend increase, cable efficiency decreases. Keep the bend radius as large as possible and the degrees of bend to a minimum for optimal performance.

Backlash (lost motion): Motion lost between the input end rod and the output end rod is due to factors such as the amount of clearance between the conduit and innermember, applied loads, degrees of bend, overall length and material characteristics.

Efficiency: The amount of force lost between the input load and the output load is due to factors such as friction, increasing loads, etc. As efficiency decreases, the cable becomes harder to operate.

Length: As length increases, cable efficiency may decrease. Maximum lengths depend on materials, degrees of bend, load, etc.

Loads: All cables have limited load capacities (see push-pull cable specifications). Prudent choice of cable capability/size will enhance life and performance.

Environment: Factors such as temperature, moisture, dirt/contamination can significantly affect cable performance and life.



【 Push-Pull Cable Specifications 】

Control Cable Push-Pull Throttle Cable 0


【 Push-Pull Standard Order Code 】

Control Cable Push-Pull Throttle Cable 1
