Aerospace Custom Control Cable IATF16949 Mechanical Push Pull Control Cables

Aerospace Custom Control Cable IATF16949 Mechanical Push Pull Control Cables

  • High Light

    Aerospace Custom Control Cable

    ,

    IATF16949 Custom Control Cable

    ,

    Mechanical push pull control cables

  • Name
    Custom Mechanical Push-Pull Control Cables Control Cable Assemblies
  • Material
    As Per Requirements
  • Feature
    High Temperature Resistance, Low Loss , Long Service Life
  • Certificate
    IATF16949
  • Applications
    Automotive, Aerospace, Heavy Equipment Industries
  • Cover Color Options
    Gray, Green Or As Per Requirements
  • Size
    OEM Standard Size Or Customized
  • Temperature Range Std
    -65°F To 230°F
  • Cable Length
    2m, 2.8m, 3.2m, ...8m Etc
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    10 Piece/Pieces
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7-40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece/Pieces per Month

Aerospace Custom Control Cable IATF16949 Mechanical Push Pull Control Cables



Custom Mechanical Push-Pull Control Cables Control Cable Assemblies



【 Product Description 】

The mechanical push-pull cables, which produces ourself, are of extremely high quality. This means that the cables have a long service life. Since both the braided inner cable and the very sturdy outer cable are covered with a layer of teflon, bends in the cable are no problem at all. We have the equipment and knowledge to make these cables ourselves. This means that we can always take into account the wishes of the customer. In other words: all distances, thicknesses of 3, 4, 6 and 8 series from 1 to 6 inches. In both Imperial and metric thread and confirmation methods.Thanks to the experience and knowledge of our employees, we are also able to recreate mechanical push-pull cables from other brands.



【 Push-Pull Assemblies 】

Push-Pull Assemblies are used when the transmission of force is required in both directions of the assembly travel. A choke on a lawn mower engine is a good example of this.Custom push-pull assemblies offer multidirectional control for precise and accurate control of mechanical motion. The basic design and function of push pull assemblies makes them flexible and adaptable to fit into a wide variety of applications. The solid wire fittings of push pull assemblies make it easy to attach them to an assortment of connecting points on equipment, complicated control systems, or automated machinery. The variety of hardwired end points of push pull assemblies ensures a secure and reliable connection to any type of device. The versatility of push pull assemblies offers a dependable way of motion transmission between fixed points or ones that constantly change their relative position.



【 Pull Assemblies 】

Pull Assemblies are used when the transmission of force is needed in only one direction. Think of the hood release on your car.The unique nature of pull assemblies requires attention to the specific requirements of the application. The single direction of a pull assembly may give the impression that it is a type of device that has a simple and straight forward operation. There are other considerations that must be examined when creating a pull assembly.The most important factor related to pull assemblies is the load being applied to the cable. The stroke length and stretch of the cable determine the potential pulling ability of a pull assembly. If there is too much stretch, the cable won’t be able to activate the device.



【 Conduit Bowden Options 】

Cover: Vinyl, HDPE or uncovered wound wire

Liner: HDPE, or unlined

Braid: wound music wire, or braided and encased in polymer coating



【 Inner Wire 】

When thinking about the inner wire to use in your push pull control cable, there are a number of options to consider. Even the lightest type of load requires a solid wire with core materials that are designed to fit the application. It is important to know that loads are the greatest in the pull direction, which is a major consideration when a push pull cable is being designed.



【 Cable Material 】

Galvanized steel or stainless steel



【 Cable Construction 】

Typically, these assemblies are made of 7 x 19 (most flexible), 7 x 7, or 1 x 19 (least flexible) cables.



【 Conduit 】

Most often our customers will opt for uncoated cable as it will create the least amount of friction inside the conduit, and will extend the life of the control.



【 Length】

There really isn’t a minimum or maximum length, just let us know your application.



【 Ends Fittings or Terminals】

We have a large selection of end fittings, including balls, ball shanks, sleeves, stamped eyes, stops, thimbles, handles/knobs, strap forks, strap eyes, and threaded studs. Others options are available as well.



【 Industries】

Push pull controls are important components in many different industries. Automotive, aerospace, heavy equipment and more all used variations of push pull control assemblies to adjust mechanisms and activate certain parts during operation. Quality cable assemblies make all of the difference in the lifetime performance of these parts.In the current computer age we find ourselves in, control cables have become an essential part of programming automated equipment. The reason control cables are so essential is due to their versatility and ability to be inserted into any process knowing that they will perform accurately and flawlessly.

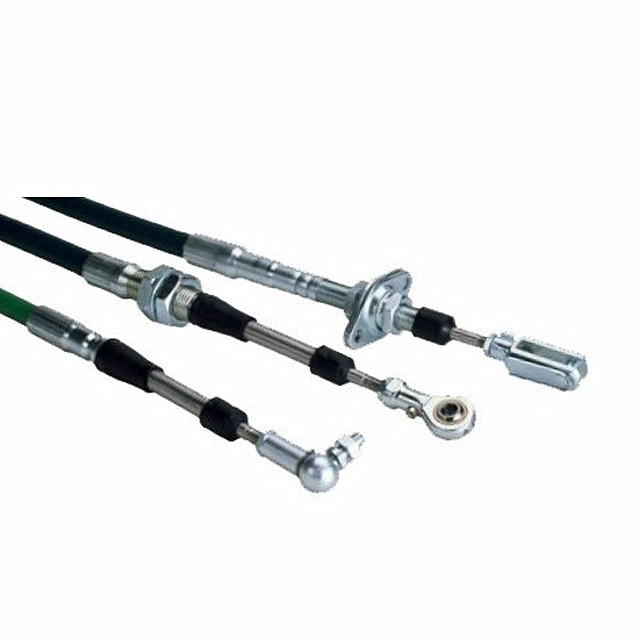

【 Real Picture 】

Aerospace Custom Control Cable IATF16949 Mechanical Push Pull Control Cables 0
