Zinc Coated Carbon Steel Stainless Steel Material Ball Joint Threaded Rod End
【 Product Description 】
Material:
1) Ball socket: carbon steel 1035
Ball stud: carbon steel 1045 / carbon steel1035 welded with ball
Outer/Inner circlip : spring steel
2) Dust shield : neoprene ,work on -40~120℃ temperature(excellent performance).
Surface : galvanized, passivated in zinc/clear or zinc / yellow
Optional material for all Angle joints: stainless steel 304 / Aluminium
Notes :
1. A,B,C type without outer circlip on the ball socket.
AS,BS,CS type with outer circlip on the ball socket.
2. Left-hand thread in the ball socket is possible ; Dust shield upon customer’ request .
3. There is spanner width for type C and CS on the ball stud.
The manufacturer reserve the right to supply the ball socket with or without spanner surface. Customer can choose which one to use.
【 Drawing 】

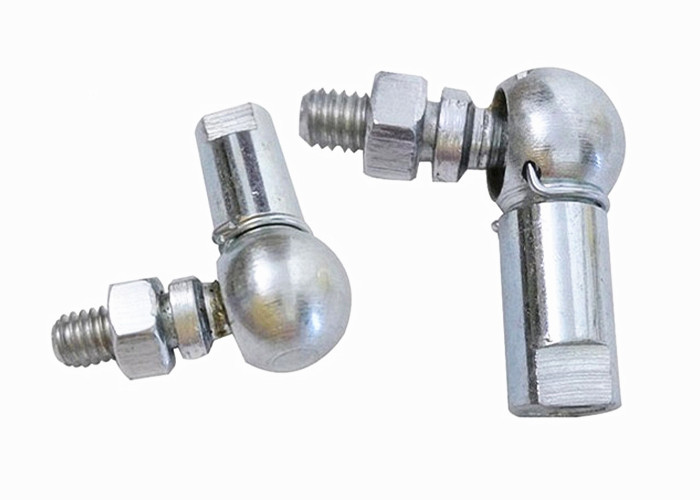

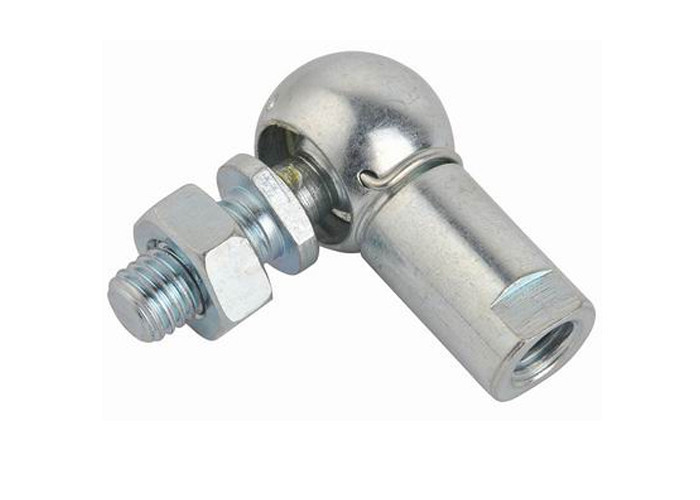

【 Real Picture 】
