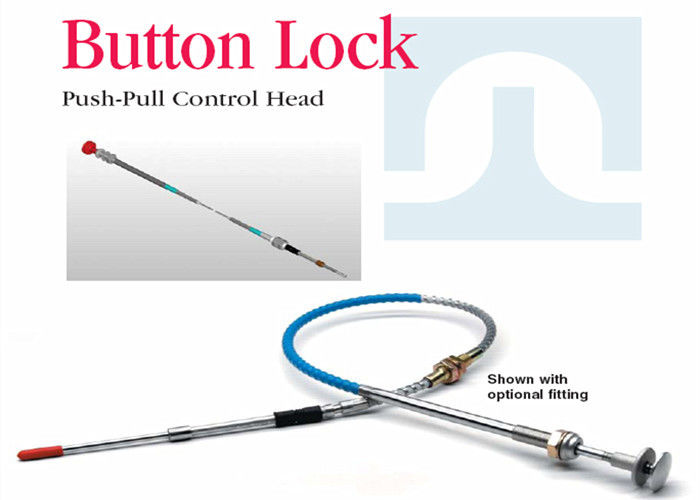

Shown With Optional Fitting Button Lock Performance Push Pull Control Head Mechanical Control Cable Head
【 Product Description 】
Button lock control heads offer more features than conventional heads. By depressing the center button, cable position can be altered, and therefore offers more options than a fixed control head. They can operate on temperatures ranging from -65 deg;F to 230 deg;F, with a bend radius of 3.00quot; or 7.00quot;. They feature a 120lb tension and a 25lb compression. Made out of stainless steel or plated carbon steel, with plastic seals and knobs, they can be used for heat, vent, A/C and engine cowl control.
| 【 Applications 】 • Aircraft • Heat control • Vent control • A/C control • Engine cowl control |
【 Features 】 • Travel: 3.00" minimum • Bend radius: 3.00" minimum& 7.00" minimum • Operating temperature: -65°F — 230°F • Normal load (with swivel output fitting) • 120lb tension • 25lb compression |
|
| 【 Material 】 • Stainless Steel or Plated Carbon Steel • Plastic Coated Carbon Steel Conduit and Innermember • Plastic Seal • Plastic Knob |
||
【 Standard Output - Button Lock 565-553 】
| Notes: (Design Parameters) | Operating temperature: | Normal load: |
| Stroke: 3.00" | from -65°F — +165°F at | 120lb tension, 25lb |
| Minimum bend radius: 3.00" | input end/+230°F at output end | compression |
【 Solid Wire Output - Button Lock 565-554 】
| Notes: (Design Parameters) | Operating temperature: |
Normal load:Unspecified |
| Stroke: 3.00" | from -65°F — +165°F at | (determined by |
| Minimum bend radius: 7.00" | input end/+230°F at output end | installation configuration) |
【Ordering Codes 】
| I/M type —— 553 |
| 553 = standard 554 = wire |
| Output Options —— T |
| T = Threaded G = Grooved |
| Cable Length —— XXX |
| End fittings —— C |
| C = Conduit Cap (available only on solid wire & wire rope I/M) |
All line art dimensions are represented in inches
