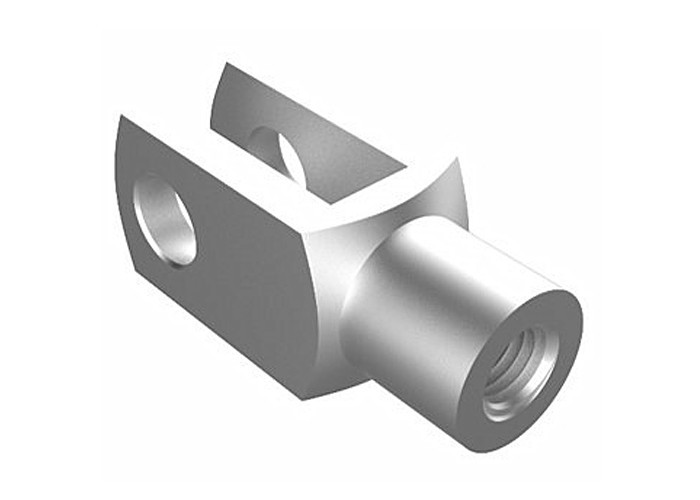

DIN71752 Carbon Steel U Fork Gas Spring Rod End Clevis

DIN71752 Carbon Steel U Fork Gas Spring Rod End Clevis

  • High Light

    Gas Spring Rod End Clevis

    ,

    U Fork Rod End Clevis

    ,

    DIN71752 Rod End Clevis

  • Name
    Custom Stainless Steel Carbon Steel U Fork, Gas Spring Rod End Clevis, With Clevis Pin And End Fitting
  • Material
    Stainless Steel 304 / Carbon Steel
  • Certificate
    IATF16949
  • Standard
    Standard & Non-Standard, According To Customer's Requirement
  • Application
    Mechanical Industrial
  • Color
    According To Customer
  • Production Processing
    Sawing, Machining, Milling,Surface Treatment
  • Surface
    Galvanized,Passivated In Zinc / Clear Or Zinc / Yellow
  • Size
    Customized
  • Samples
    Avaliable
  • Place of Origin
    China
  • Brand Name
    PHIDIX
  • Certification
    IATF16949
  • Model Number
    Customized
  • Minimum Order Quantity
    10 Piece/Pieces
  • Price
    Negotiation
  • Packaging Details
    carton or wood case
  • Delivery Time
    7-40 work days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    888 Piece/Pieces per Month

DIN71752 Carbon Steel U Fork Gas Spring Rod End Clevis



Custom Stainless Steel Carbon Steel U Fork, Gas Spring Rod End Clevis, With Clevis Pin And End Fitting



【 Product Description 】

Standard : DIN71752 / DIN ISO 8140.

Example: Clevis according to DIN71752 d1=10mm, slot length g=20mm, with metric fine-pitch thread, d2=M10x1.25; Clevis G10x20,M10x1.25.

(Unless otherwise specified, all dimensions are in mm. )

Standard : Clevis similar to DIN71752 /Supplement DIN ISO 8140 and according to CETOP standard.

Example: Clevis according to CETOP with bore d1=20mm, slot length g=40mm, with metric fine-pitch thread d2=M20x1.5; Clevis G20x40FG

(Unless otherwise specified, all dimensions are in mm.)



【 Clevises Dimensions(mm) 】

DIN71752 Carbon Steel U Fork Gas Spring Rod End Clevis 0

DIN71752 Carbon Steel U Fork Gas Spring Rod End Clevis 1

【 Real Picture 】

DIN71752 Carbon Steel U Fork Gas Spring Rod End Clevis 2
