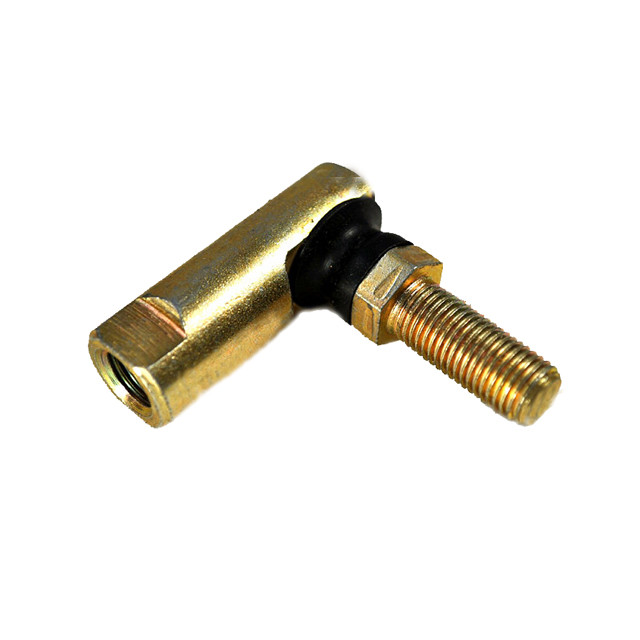

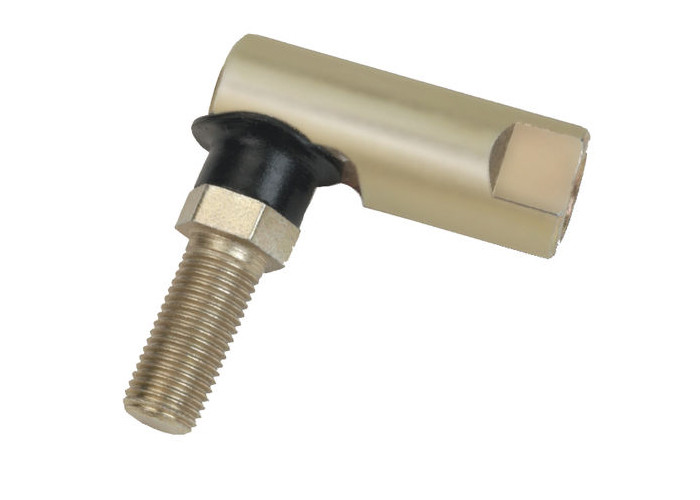

High Precision Push Pull Cable Parts , R-G Stainless Steel Swivel Ball Joint

Push Pull Cable End Fitting RG Stainless Steel Ball Joint Swivel Ball Joint

【 Product Description 】

The R-G Ball joints is a cablecraft motion control that has an economic metal-to-metal ball joint design that can be applied on lawn and garden equipment, construction and industrial equipment. It is made out of steel and ball stud "staked" design which gives a practical solution to medium to heavy-duty ball joint applications. The ball stud and body has an extended wear life which is produced from low carbon steel; the ball stud is also heat-treated. It offers a durable seal against contaminants because of its rubber grommet. A temperature of -30°F – 250°F (-34°C – 121°C) can be handled by the ball joints. Also, it is available in custom sizes depending on your needs.

【 R-G 】
Steel Housing, Staked Design with Rubber Grommet

Chart Notes: 1. Ball Joint can be ordered without the grommet by dropping the “G” suffix.

                            Example: R108LH
                       2. R103G size is supplied with a wrap around grommet, not shown.
